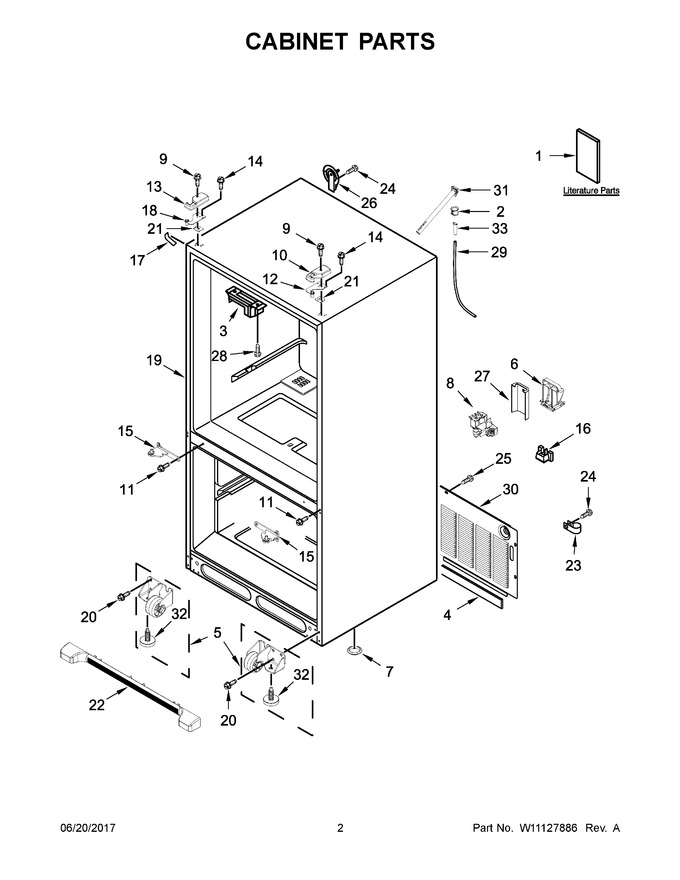

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10597594 | Use And Care Guide |
|
- | |||||
| 2 | WPM0114003 | Clip, Speed (Replaces: M0114003) |
|
$ 10.44 | |||||
| 3 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.39 | ||||
| 4 | B5759655 | Gasket |
|
$ 11.73 | |||||
| 5 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 33.62 | ||||
| 6 | W10528513 | Sweep, Dual Tube |
|
$ 39.37 | |||||
| 7 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 8 | WPW10420083 | Valve, Water Inlet (Replaces: W10420083) |
|
Immediately | $ 145.92 | ||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 6.80 | ||||
| 10 | WPW10191117 | Cover, Right Hinge (grey) (Replaces: 12962302AP) |
|
$ 20.75 | |||||
| 11 | WP489349 | Screw (Replaces: 12990101) |
|
Immediately | $ 7.59 | ||||
| 12 | W11592374 | Hinge, Top (right Hand) (Replaces: 12963205ED) |
|
Immediately | $ 28.71 | ||||
| 13 | WPW10337648 | Cover, Left Hinge (grey) (Replaces: W10337648) |
|
$ 20.81 | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.59 | ||||
| 15 | W11747628 | Hinge, Center Left Hand (grey) (Replaces: W10740150) |
|
Immediately | $ 57.76 | ||||
| 16 | W11686793 | Block, Fill Tube (Replaces: W10658542) |
|
$ 21.21 | |||||
| 17 | WP12587703AP | Cover, Corner (grey) (Replaces: 12587703AP) |
|
$ 7.26 | |||||
| 18 | W11592375 | Hinge, Top (left Hand) (Replaces: 12963204ED) |
|
$ 28.73 | |||||
| 19 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 20 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 7.34 | ||||
| 21 | 12999501 | Shim, Top Hinge (left Hand) |
|
$ 89.58 | |||||
| 22 | WPW10534155 | Assembly, Grille (includes Clips) (grey) (Replaces: W10534155) |
|
Immediately | $ 107.60 | ||||
| 23 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 20.16 | ||||
| 24 | WP98165 | Screw (Replaces: 12990504) |
|
$ 7.71 | |||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.57 | ||||
| 26 | 12726003 | Cover, Water Line |
|
$ 17.27 | |||||
| 27 | W10208593 | Guard, Dual Water Valve |
|
$ 14.14 | |||||
| 28 | W10854958 | Screw (Replaces: 12990302) |
|
$ 7.11 | |||||
| 29 | W11120581 | Tubing, Plastic (Replaces: W11031913) |
|
$ 112.44 | |||||
| 30 | WPW10211855 | Cover, Unit (Replaces: W10211855) |
|
$ 187.19 | |||||
| 31 | W11176463 | Elbow, Fill Tube (Replaces: 10463203) |
|
Immediately | $ 107.87 | ||||
| 32 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 33 | WPA3223101 | Insert, Tube (Replaces: A3223101) |
|
$ 7.39 | |||||
| 15A | W11747628 | Hinge, Center Right Hand (grey) (Replaces: W10740146) |
|
Immediately | $ 57.76 | ||||
| 1A | W10517966N | Tech Sheet |
|
- | |||||
| 1B | W11113225 | Energy Guide |
|
- | |||||
| 21A | 12999502 | Shim, Top Hinge (right Hand) |
|
$ 90.54 | |||||
| 5A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 33.62 |
