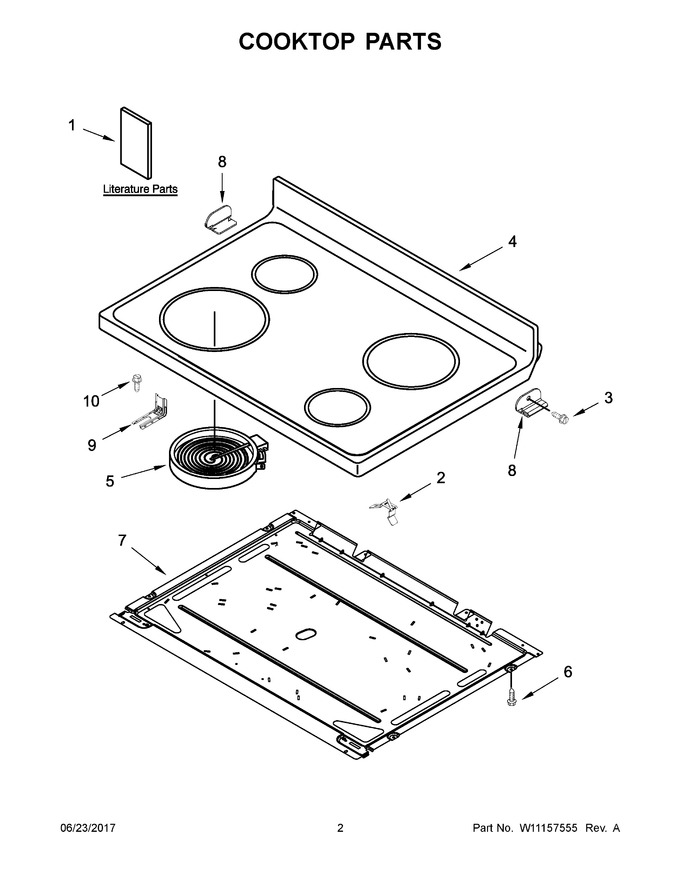

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403812		Instructions, Installation		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
3	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
4	W10472025		Cooktop (white)   (Replaces: W10380658)				$ 533.87
5	W10895828		Element (3000w) (left Front)   (Replaces: W10248263)				$ 287.20
6	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
7	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 129.14
8	W10607641		Bracket, Cooktop (left)				$ 30.17
9	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 25.69
10	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
1A	W10384447		Tech Sheet (english)		Appelez-nous	-
1B	W10384462		Tech Sheet (french)		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1E	W10719736		Use And Care Guide		Appelez-nous	-
4A	W10472027		Cooktop (black)   (Replaces: W10380659)				$ 531.60
5A	W11171119		Element (1200w) (right Front And Left Rear)   (Replaces: 8273994)			Immediately	$ 203.06
5B	WP8273993		Element (1800w) (right Rear)   (Replaces: 8273993)			Immediately	$ 258.96
8A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
NI	W11825098		Harness, Hidden Bake   (Replaces: W10465644)				$ 77.70
NI	W11172424		Harness, Sensor   (Replaces: W10083650)				$ 102.40
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10349660		Harness, Wire (main)				$ 174.25
NI	W10844299		Harness, Wire (cooktop Right)		Appelez-nous	-
NI	W10844300		Harness, Wire (cooktop Left)		Appelez-nous	-
