01 - Cover Sheet
02 - Control Panel Parts
03 - Cabinet Parts
04 - Door Parts
05 - Top Venting Parts
06 - Oven Interior Parts
07 - Installation Parts
SELECT A DIAGRAM
New Model Search:

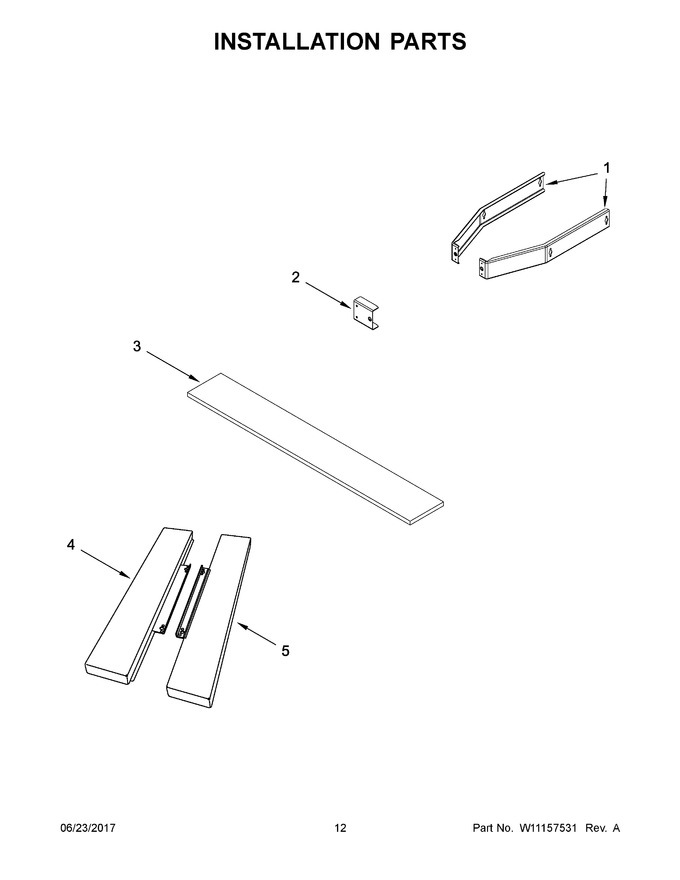

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10775910 | Bracket, Mounting (Replaces: 461967011821) |
|
$ 104.73 | |||||
| 2 | W10731693 | Tip, Mounting Bracket |
|
$ 65.03 | |||||
| 3 | W10769061 | Rail, Distance |
|
$ 72.74 | |||||
| 4 | W11160291 | Assembly, Side Strip (left) (Replaces: W10912161) |
|
$ 168.15 | |||||
| 5 | W11160312 | Assembly, Side Strip (right) (Replaces: W10912162) |
|
$ 152.25 | |||||
| NI | W10737669 | Kit, Screw |
|
$ 31.91 | |||||
| NI | W11356982 | Harness, Fan & Turntable Motor (Replaces: W10873988) |
|
Immediately | $ 134.06 | ||||
| NI | W11356974 | Harness, Interlock Switch (Replaces: W10709978) |
|
$ 151.04 | |||||
| NI | W11356975 | Harness, Lamp (Replaces: W10873987) |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10474490 | Harness, Pcb To Inverter |
|
$ 20.91 | |||||
| NI | W11356971 | Harness, Sensor (Replaces: W10873986) |
|
$ 102.11 |
