01 - Cover Sheet

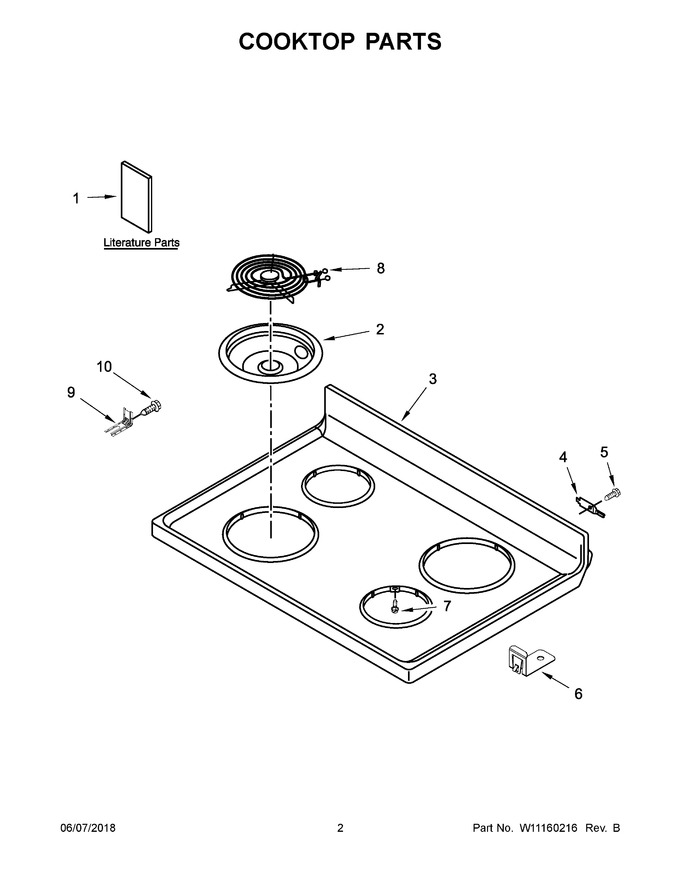

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer And Broiler Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11034224 | Instructions, Installation (english) |
|
- | |||||
| 2 | WPW10196406 | Bowl, Drip (6") (right Front And Left Rear) (Replaces: W10196406) |
|
Immediately | $ 12.05 | ||||
| 3 | 8195532 | Cooktop (white) (Replaces: 3186231) |
|
$ 377.38 | |||||
| 4 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 11.86 | ||||
| 5 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 6 | W10626011 | Clip, Cooktop |
|
- | |||||
| 7 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.60 | |||||
| 8 | W11168414 | Element, Surface (6") (right Front And Left Rear) (Replaces: W10259870) |
|
Immediately | $ 139.04 | ||||
| 9 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 25.69 | ||||
| 10 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 1A | W11035119 | Instructions, Installation (arabic) |
|
- | |||||
| 1B | W10916032 | Use And Care Guide (english) |
|
- | |||||
| 1C | W10916033 | Use And Care Guide (arabic) |
|
- | |||||
| 1D | W10394783 | Tech Sheet (english) |
|
- | |||||
| 1E | W10464421 | Tech Sheet (arabic) |
|
- | |||||
| 2A | WPW10196405 | Bowl, Drip (8") (left Front And Right Rear) (Replaces: W10196405) |
|
Immediately | $ 15.56 | ||||
| 8A | W11161939 | Element, Surface (8") (left Front And Right Rear) (Replaces: W10259867) |
|
Immediately | $ 151.77 | ||||
| NI | W11396691 | Harness, Cooktop (Replaces: W10279107) |
|
$ 170.78 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10464026 | Harness, Main |
|
- |
