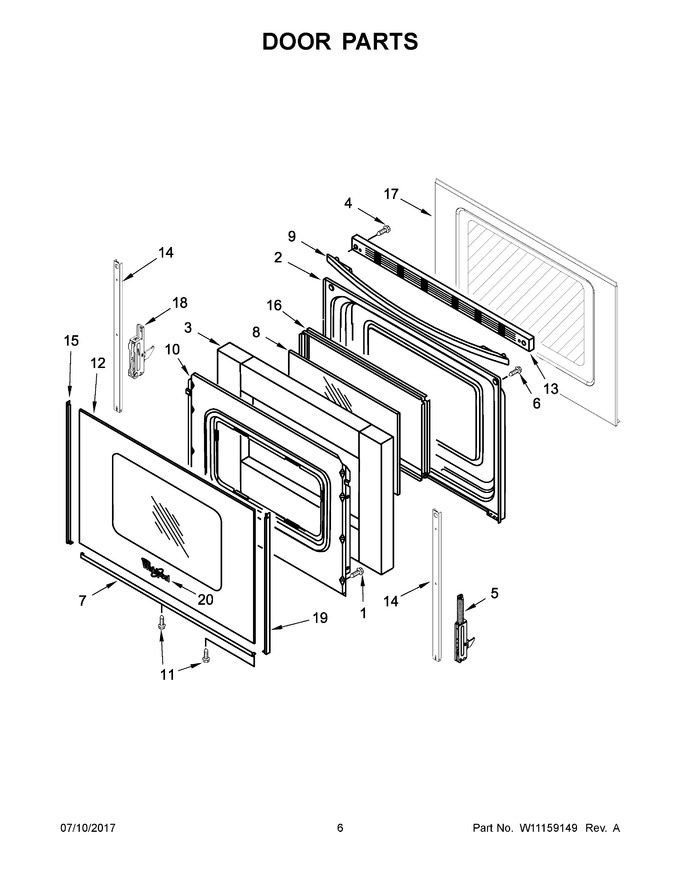

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 2 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 3 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 91.23 | ||||
| 4 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.42 | ||||
| 5 | WPW10440013 | Hinge, Door (active) (Replaces: W10388635) |
|
Immediately | $ 57.42 | ||||
| 6 | W10817436 | Screw (Replaces: W10168559) |
|
Immediately | $ 7.33 | ||||
| 7 | W11594186 | Trim, Lower Door (white) (Replaces: 8523175) |
|
Immediately | $ 55.23 | ||||
| 8 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
Immediately | $ 208.85 | ||||
| 9 | W10817434 | Handle, Oven Door (white) (Replaces: W10323588) |
|
Immediately | $ 211.34 | ||||
| 10 | W11539580 | Retainer, Insulation (Replaces: 9761357) |
|
$ 209.98 | |||||
| 11 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 12 | W11702168 | Glass, Window (black) (Replaces: W10886896) |
|
$ 167.28 | |||||
| 13 | W10817433 | Trim, Oven Door Vent (white) (Replaces: W10310920) |
|
Immediately | $ 162.27 | ||||
| 14 | W11502236 | Strap, Door (Replaces: W10544179) |
|
Immediately | $ 24.91 | ||||
| 15 | WP8523172 | Trim, Door (white (left)) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 16 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 81.08 | ||||
| 17 | W11214475 | Glass Assembly, Outer Door (stainless) (Replaces: W10890951) |
|
$ 383.16 | |||||
| 18 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 57.42 | ||||
| 19 | WP8523166 | Trim, Door (white (right)) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 20 | W10849465 | Badge (white) |
|
Immediately | $ 74.53 | ||||
| 12A | W10904906 | Glass, Window (white) (Replaces: W10851723) |
|
$ 254.42 | |||||
| 13A | WPW10310922 | Trim, Oven Door Vent (black) (Replaces: W10310922) |
|
Immediately | $ 157.83 | ||||
| 15A | W10761018 | Trim, Door (black (left)) (Replaces: W10746436) |
|
Immediately | $ 49.32 | ||||
| 19A | W10761014 | Trim, Door (black (right)) (Replaces: W10746435) |
|
Immediately | $ 65.66 | ||||
| 20A | W11240541 | Badge (stainless) (Replaces: W10846752) |
|
Immediately | $ 70.16 | ||||
| 9A | WPW10144883 | Handle, Oven Door (stainless) (Replaces: W10144883) |
|
$ 227.39 |
