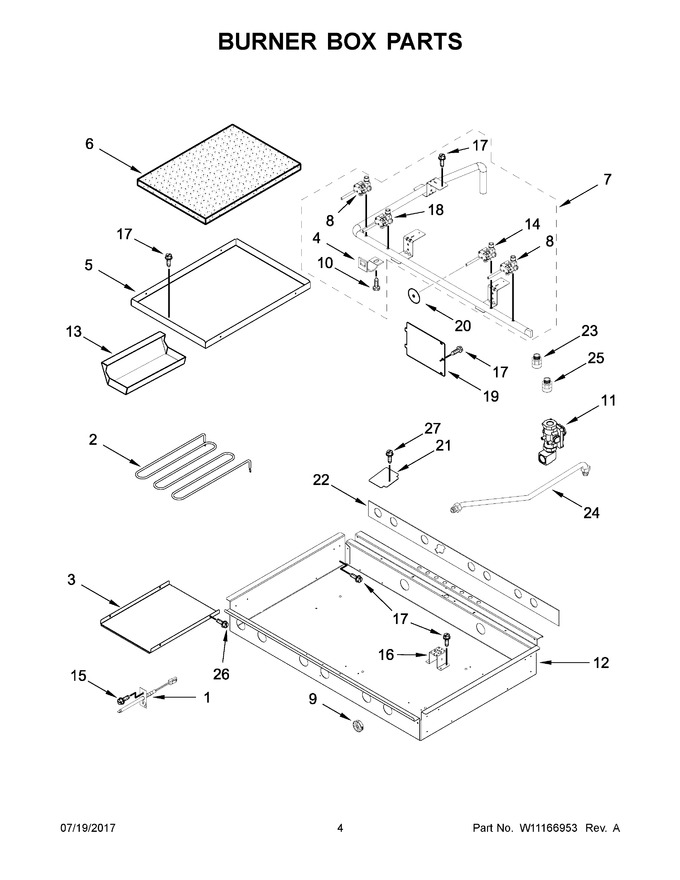

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10319835		Sensor, Griddle				$ 215.35
2	W10138296		Element, Griddle		Appelez-nous	-
3	W10145620		Tray, Element Griddle		Appelez-nous	-
4	WPW10432260		Bracket, Valve   (Replaces: W10432260)				$ 66.59
5	W10246074		Tray, Griddle Insulation		Appelez-nous	-
6	W11684995		Insulation, Griddle   (Replaces: W10145621)		Appelez-nous	-
7	W10402610		Assembly, Manifold		Appelez-nous	-
8	WPW10385582		Valve, Single   (Replaces: W10385582)			Immediately	$ 306.77
9	W10189097		Bushing, Burner Box				$ 7.20
10	W10189140		Screw				$ 6.14
11	W10449141		Regulator, Pressure			Immediately	$ 290.80
12	W10371516		Box, Burner		Appelez-nous	-
13	W10276497		Tray, Griddle Drip				$ 363.63
14	WPW10385583		Valve, Simmer   (Replaces: W10385583)			Immediately	$ 298.89
15	WPW10068250		Screw   (Replaces: 7101P074-60)				$ 3.84
16	W10560553		Bracket, Burner		Appelez-nous	-
17	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
18	WPW10371235		Valve, Dual   (Replaces: W10371235)			Immediately	$ 298.94
19	W10115843		Cover, Ignition		Appelez-nous	-
20	W10189177		Seal, Switch Cover				$ 9.00
21	W10287036		Cover, Housing		Appelez-nous	-
22	W11688578		Insulation, Burner Box   (Replaces: W10145622)		Appelez-nous	-
23	4453116		Adapter, Male				$ 161.49
24	W10269191		Tube, Pressure Regulator				$ 195.92
25	4453115		Adapter, Female				$ 114.03
26	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.57
27	WP486754		Screw   (Replaces: 246119)				$ 7.21
NI	W10353141		Tube (right Front)				$ 157.64
NI	WPW10353133		Tube (right Rear)   (Replaces: W10353133)				$ 157.40
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10353154		Tube (left Front)			Immediately	$ 155.50
NI	W10280797		Tube, (left Rear)		Appelez-nous	-
NI	W10353152		Tube (center Front)				$ 71.04
