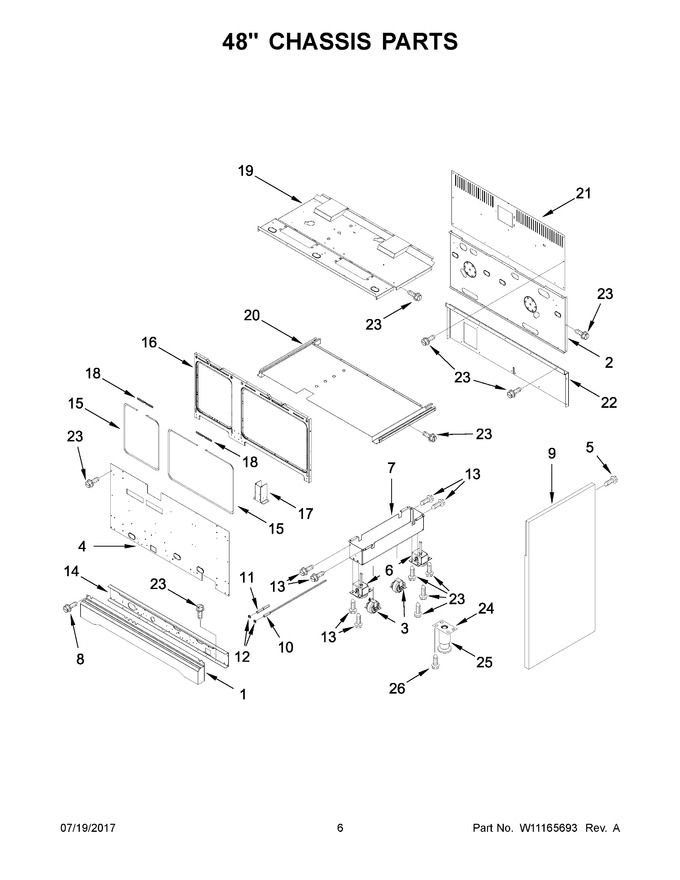

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11166542 | Kickplate (imperial Black) (Replaces: W11028641) |
|
- | |||||
| 2 | W10235546 | Back, Chassis |
|
- | |||||
| 3 | WPW10138054 | Assembly, Roller (Replaces: W10138054) |
|
$ 40.81 | |||||
| 4 | W10269195 | Duct, Bottom |
|
- | |||||
| 5 | W10129030 | Screw |
|
- | |||||
| 6 | W10859931 | Leveler (Replaces: 9760860) |
|
$ 107.20 | |||||
| 7 | W10249333 | Base, Leveling Leg |
|
$ 263.00 | |||||
| 8 | WP3400832 | Screw (black) (Replaces: 3400832) |
|
Immediately | $ 7.36 | ||||
| 9 | W11321067 | Panel, Side (left) (Replaces: W10250467) |
|
$ 395.43 | |||||
| 10 | W10115869 | Shaft, Long |
|
Immediately | $ 98.42 | ||||
| 11 | W10115793 | Shaft, Short |
|
$ 68.25 | |||||
| 12 | 489504 | E-ring |
|
$ 6.66 | |||||
| 13 | WP4449743 | Screw (Replaces: 4449743) |
|
$ 6.80 | |||||
| 14 | W10269192 | Support, Channel |
|
- | |||||
| 15 | W11675844 | Gasket, Oven (30") (Replaces: W10850858) |
|
Immediately | $ 67.10 | ||||
| 16 | W10160895 | Frame, Front |
|
- | |||||
| 17 | W10115819 | Column, Central |
|
- | |||||
| 18 | W11368870 | Retainer, Gasket (30") (Replaces: W10157511) |
|
$ 22.42 | |||||
| 19 | W10267895 | Chassis, Top |
|
- | |||||
| 20 | W10235535 | Chassis, Bottom |
|
- | |||||
| 21 | W10269209 | Panel, Back Top |
|
- | |||||
| 22 | W10145397 | Panel, Back Bottom |
|
- | |||||
| 23 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 24 | WP9759118 | Plate, Mounting (Replaces: 9759118) |
|
$ 139.45 | |||||
| 25 | WP9759117 | Foot, Dual Fuel (Replaces: 9759117) |
|
$ 133.79 | |||||
| 26 | 3400518 | Screw |
|
$ 12.27 | |||||
| 15A | W10775946 | Gasket, Oven (18") |
|
$ 128.45 | |||||
| 18A | W10216520 | Retainer, Gasket (18") |
|
- | |||||
| 1A | W11166543 | Kickplate (imperial White) (Replaces: W11028642) |
|
- | |||||
| 1B | W11166987 | Kickplate (cobalt Blue) (Replaces: W11028636) |
|
- | |||||
| 1C | W11166988 | Kickplate (signature Red) (Replaces: W11028640) |
|
- | |||||
| 8A | WP3196557 | Screw (white, Blue, And Red Models) (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 9A | W10250466 | Panel, Side (right) |
|
$ 461.92 |
