01 - Cover Sheet
02 - Top And Console Parts

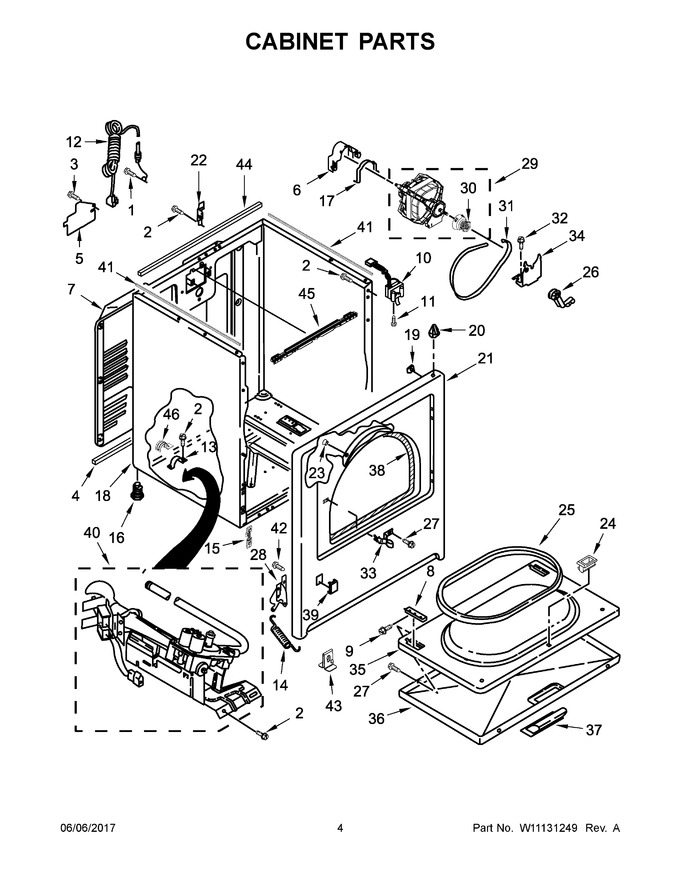

03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.43 | |||||
| 2 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 3 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | W11596046 | Seal, Spill Guard (Replaces: W10841728) |
|
Immediately | $ 48.68 | ||||
| 5 | W11539855 | Cover, Terminal Block (Replaces: W10686798) |
|
Immediately | $ 566.78 | ||||
| 6 | WPW10121316 | Clamp, Motor Mount (Replaces: W10121316) |
|
Immediately | $ 24.26 | ||||
| 7 | W11626083 | Panel, Rear (Replaces: W10634729) |
|
$ 122.60 | |||||
| 8 | W11252547 | Clip, Hinge (Replaces: 337189) |
|
$ 20.21 | |||||
| 9 | WP308685 | Screw (Replaces: 3357011) |
|
Immediately | $ 7.08 | ||||
| 10 | WP3406107 | Switch, Door (Replaces: W10569603) |
|
Immediately | $ 28.08 | ||||
| 11 | WP3395530 | Screw (Replaces: 697773) |
|
$ 7.71 | |||||
| 12 | W11222083 | Cord, Power (Replaces: W10869141) |
|
$ 113.96 | |||||
| 13 | 341029 | Clamp, Pipe |
|
- | |||||
| 14 | WPW10041960 | Spring, Door (Replaces: W10041960) |
|
Immediately | $ 38.43 | ||||
| 15 | W10854425 | Clip, Front Panel (Replaces: W10775448) |
|
Immediately | $ 14.71 | ||||
| 16 | 49621 | Foot, Dryer (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 17 | WP3404162 | Clamp, Motor (with Shield) (Replaces: 3404162) |
|
Immediately | $ 7.39 | ||||
| 18 | 8533643 | Cabinet (white) (Replaces: 8530603) |
|
$ 377.30 | |||||
| 19 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.76 | ||||
| 20 | WP8066092 | Lock, Front Top (Replaces: 8066092) |
|
$ 18.43 | |||||
| 21 | 279740 | Panel, Front (white) (Replaces: W10664692) |
|
$ 342.06 | |||||
| 22 | W11715722 | Hinge, Top (Replaces: W10641296) |
|
$ 7.37 | |||||
| 23 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 21.20 | |||||
| 24 | WP3389441 | Assembly, Door Catch (Replaces: 3389441) |
|
Immediately | $ 6.88 | ||||
| 25 | W10906683 | Seal, Door (Replaces: W10823580) |
|
$ 121.46 | |||||
| 26 | WP691366 | Idler Assembly (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 27 | WP488627 | Screw (Replaces: 342055) |
|
$ 7.30 | |||||
| 28 | WP8066056 | Hinge, Door (right) (Replaces: 8066056) |
|
Immediately | $ 93.02 | ||||
| 29 | 279827 | Assembly, Motor (Replaces: W10396029) |
|
Immediately | $ 195.48 | ||||
| 30 | WP8066184 | Pulley, Motor (Replaces: 8066184) |
|
Immediately | $ 46.15 | ||||
| 31 | 341241 | Belt, Drive (Replaces: W10131364) |
|
Immediately | $ 16.34 | ||||
| 32 | 3400500 | Bolt |
|
Immediately | $ 12.64 | ||||
| 33 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 34 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 114.89 | ||||
| 35 | WP695737 | Door, Rear (Replaces: 695737) |
|
$ 240.56 | |||||
| 36 | W10861223 | Door, Outer (white) (Replaces: W10714515) |
|
$ 209.95 | |||||
| 37 | W10861225 | Handle, Door (white) (Replaces: W10714516) |
|
Immediately | $ 48.83 | ||||
| 38 | W11035878 | Assembly, Seal And Bearing (Replaces: W10803476) |
|
Immediately | $ 87.58 | ||||
| 39 | W10811916 | Plug, Front Panel (white) (Replaces: 8564457) |
|
$ 14.85 | |||||
| 40 | W10823508 | Burner Assembly (60 Hz) (type 1 And 2) (Replaces: W10336852) |
|
$ 487.12 | |||||
| 41 | WPW10157932 | Seal, Foam (Replaces: W10316529) |
|
Immediately | $ 7.61 | ||||
| 42 | 342043 | Screw |
|
- | |||||
| 43 | W10575896 | Clip, Spring |
|
$ 13.64 | |||||
| 44 | W10685675 | Seal, Rear Panel |
|
$ 17.87 | |||||
| 45 | W10641295 | Bracket, Rear |
|
$ 37.71 | |||||
| 46 | W10727507 | Clamp, Pipe |
|
- | |||||
| 28A | WP8066057 | Hinge, Door (left) (Replaces: 8066057) |
|
$ 90.86 |
