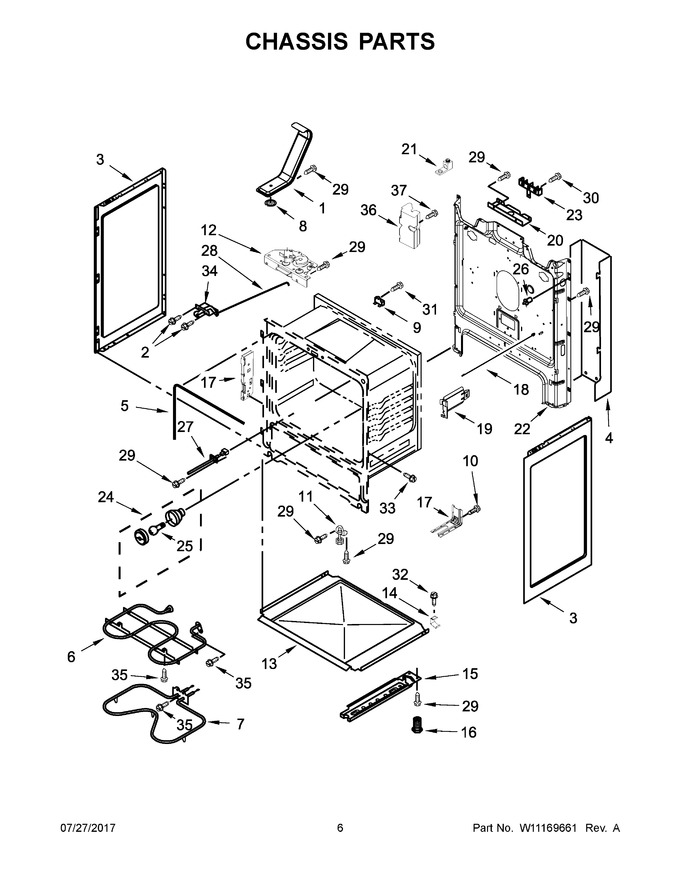

04 - Chassis Parts
05 - Drawer & Broiler Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10134285 | Tube, Vent (Replaces: W10134285) |
|
Immediately | $ 236.70 | ||||
| 2 | W11169708 | Screw (Replaces: 3196560) |
|
$ 13.36 | |||||
| 3 | W11730303 | Panel, Side (black) (Replaces: W10162245) |
|
Immediately | $ 160.65 | ||||
| 4 | WPW10326122 | Cover, Terminal Block (Replaces: W10326122) |
|
$ 125.64 | |||||
| 5 | W11542153 | Seal, Door (Replaces: W10658354) |
|
Immediately | $ 45.18 | ||||
| 6 | W10856603 | Element, Broil (Replaces: 9757340) |
|
Immediately | $ 172.30 | ||||
| 7 | WPW10308477 | Element, Bake (Replaces: W10308477) |
|
Immediately | $ 64.67 | ||||
| 8 | 9761301 | Screen, Vent |
|
$ 133.11 | |||||
| 9 | WP3196548 | Fuse, Thermal (Replaces: 3196548) |
|
Immediately | $ 45.09 | ||||
| 10 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 11 | WPW10341186 | Assembly, Front Foot (Replaces: W10341186) |
|
Immediately | $ 29.33 | ||||
| 12 | WPW10107820 | Assembly, Door Latch (rear) (Replaces: W10107820) |
|
$ 278.60 | |||||
| 13 | WP8054068 | Retainer, Insulation (Replaces: 8054068) |
|
$ 93.92 | |||||
| 14 | W10137382 | Clip, Panel |
|
Immediately | $ 43.58 | ||||
| 15 | W11818353 | Assembly, Base Rail (left) (Replaces: W10390008) |
|
$ 56.39 | |||||
| 16 | WPW10058460 | Foot, Leveling (Replaces: W10058460) |
|
Immediately | $ 7.42 | ||||
| 17 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 25.69 | ||||
| 18 | 9757239 | Rod, Door Switch |
|
$ 86.73 | |||||
| 19 | W10404688 | Clip, Oven Support |
|
$ 15.92 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | WPW10281322 | Kit, Bare Wire Adapter Block (Replaces: W10281322) |
|
$ 7.98 | |||||
| 22 | W10289149 | Back, Main |
|
$ 72.39 | |||||
| 23 | WPW10245259 | Block, Terminal (Replaces: W10245259) |
|
Immediately | $ 31.65 | ||||
| 24 | W11594027 | Assembly, Light (Replaces: W10454648) |
|
Immediately | $ 78.31 | ||||
| 25 | 8009 | Bulb, Oven Light (Replaces: 311255) |
|
Immediately | $ 16.80 | ||||
| 26 | WP9757262 | Switch, Door (Replaces: W10627802) |
|
Immediately | $ 146.71 | ||||
| 27 | WPW10181986 | Sensor, Oven (Replaces: W10181986) |
|
Immediately | $ 96.15 | ||||
| 28 | W10078380 | Rod, Latch |
|
$ 85.42 | |||||
| 29 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 30 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 31 | 3196172 | Screw |
|
Immediately | $ 12.12 | ||||
| 32 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 33 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 7.47 | |||||
| 34 | WP9761013 | Assembly, Door Latch (front) (Replaces: 9761013) |
|
$ 230.72 | |||||
| 35 | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.60 | |||||
| 36 | W11135752 | Counterweight (Replaces: W10910404) |
|
Immediately | $ 138.41 | ||||
| 37 | W11135756 | Screw (Replaces: W11034869) |
|
$ 13.26 | |||||
| 15A | W11818353 | Assembly, Base Rail (right) (Replaces: W10390007) |
|
$ 56.39 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11684918 | Insulation, Flue (Replaces: W10333344) |
|
Immediately | $ 31.93 | ||||
| NI | W11161831 | Insulation, Wrap (Replaces: W10774939) |
|
Immediately | $ 104.77 | ||||
| NI | W11311894 | Insulation, Back (Replaces: 8272612) |
|
$ 103.60 |
