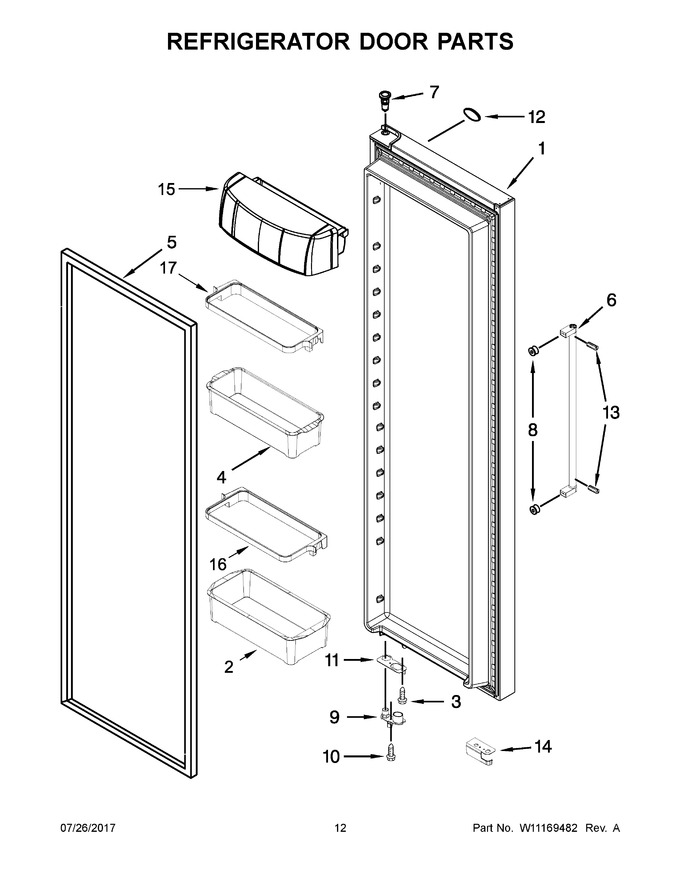

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10864694 | Door, Refrigerator (includes Item 5) (black Stainless) (Replaces: W10864694) |
|
$ 1,320.16 | |||||
| 2 | WPW10316457 | Bin, Gallon Door (Replaces: W10316457) |
|
Immediately | $ 88.82 | ||||
| 3 | WPW10296816 | Screw (Replaces: W10296816) |
|
$ 7.25 | |||||
| 4 | WPW10316461 | Bin, Shallow Door (Replaces: W10316461) |
|
$ 79.41 | |||||
| 5 | W11625680 | Gasket, Door (black) (Replaces: W10249914) |
|
- | |||||
| 6 | W11340150 | Handle (stainless) (Replaces: W10740429) |
|
$ 180.17 | |||||
| 7 | WP2182181 | Thimble, Top (Replaces: 2200086) |
|
$ 7.34 | |||||
| 8 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 9 | WPW10257201 | Closer, Upper Cam Door (black) (Replaces: W10257201) |
|
$ 11.64 | |||||
| 10 | WPW10296804 | Screw (Replaces: W10296804) |
|
$ 10.25 | |||||
| 11 | W11037957 | Bracket, Door Stop (Replaces: W10888898) |
|
$ 72.22 | |||||
| 12 | W10909682 | Nameplate (badge) (Replaces: W10518672) |
|
Immediately | $ 68.58 | ||||
| 13 | W10917698 | Set Screw (Replaces: W10687133) |
|
Immediately | $ 6.80 | ||||
| 14 | W10789145 | Cover, Door Stop (black) |
|
$ 17.43 | |||||
| 15 | WPW10324760 | Assembly, Utility Compartment (Replaces: W10324760) |
|
$ 77.04 | |||||
| 16 | WPW10494334 | Frame, Gallon Door Bin (Replaces: W10494334) |
|
$ 240.27 | |||||
| 17 | WPW10494333 | Frame, Shallow Door Bin (Replaces: W10494333) |
|
$ 252.56 |
