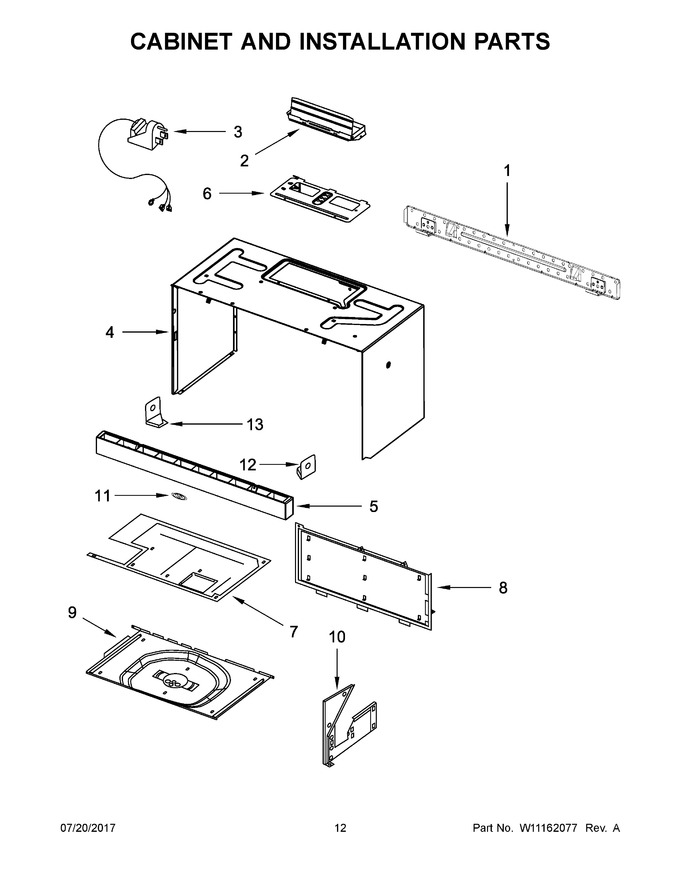

01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11025649 | Plate, Mounting (Replaces: W10440498) |
|
Immediately | $ 22.22 | ||||
| 2 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 76.13 | ||||
| 3 | W10708076 | Cord, Power (Replaces: W10654511) |
|
$ 19.40 | |||||
| 4 | WPW10244765 | Case, Outer (white) (Replaces: W10244765) |
|
$ 208.13 | |||||
| 5 | W10245217 | Grille, Vent (white) |
|
$ 95.38 | |||||
| 6 | W10210832 | Cover, Hood Fan Motor |
|
$ 6.68 | |||||
| 7 | W10248268 | Assembly, Top Plate |
|
- | |||||
| 8 | W10248267 | Assembly, Back Plate |
|
- | |||||
| 9 | W10249318 | Assembly, Bottom Plate |
|
- | |||||
| 10 | W10248279 | Assembly, Right Plate |
|
- | |||||
| 11 | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 56.82 | ||||
| 12 | W10810989 | Holder, Vent Right Side (black) (Replaces: W10703283) |
|
$ 9.20 | |||||
| 13 | W10830163 | Holder, Vent Left Side (black) (Replaces: W10703285) |
|
$ 12.79 | |||||
| 12A | W10703282 | Holder, Vent Right Side (stainless) |
|
$ 9.90 | |||||
| 13A | W11026306 | Holder, Vent Left Side (stainless) (Replaces: W10703284) |
|
Immediately | $ 6.80 | ||||
| 4A | WPW10245176 | Case, Outer (black) (Replaces: W10245176) |
|
$ 208.13 | |||||
| 5A | W10245218 | Grille, Vent (black) |
|
$ 94.46 | |||||
| 5B | W10245216 | Grille, Vent (stainless) |
|
$ 130.20 | |||||
| NI | W10553852 | Miscellaneous Parts, Harness, Wire Turntable Motor And Hood Lamp |
|
- | |||||
| NI | WP8169704 | Miscellaneous Parts, 1/4-20x3" Panhead Screw (Replaces: 8169704) |
|
Immediately | $ 12.02 | ||||
| NI | W10190018 | Miscellaneous Parts, Template, Upper (english & French) |
|
Immediately | $ 6.80 | ||||
| NI | W10190020 | Miscellaneous Parts, Template, Upper (english & Spanish) |
|
$ 56.21 | |||||
| NI | W10821385 | Miscellaneous Parts, Hardware, Installation (Replaces: W10728970) |
|
Immediately | $ 93.35 | ||||
| NI | W10539840 | Miscellaneous Parts, Harness, Pcba Ground Wire |
|
$ 22.57 | |||||
| NI | W10553872 | Miscellaneous Parts, Harness, Main |
|
- |
