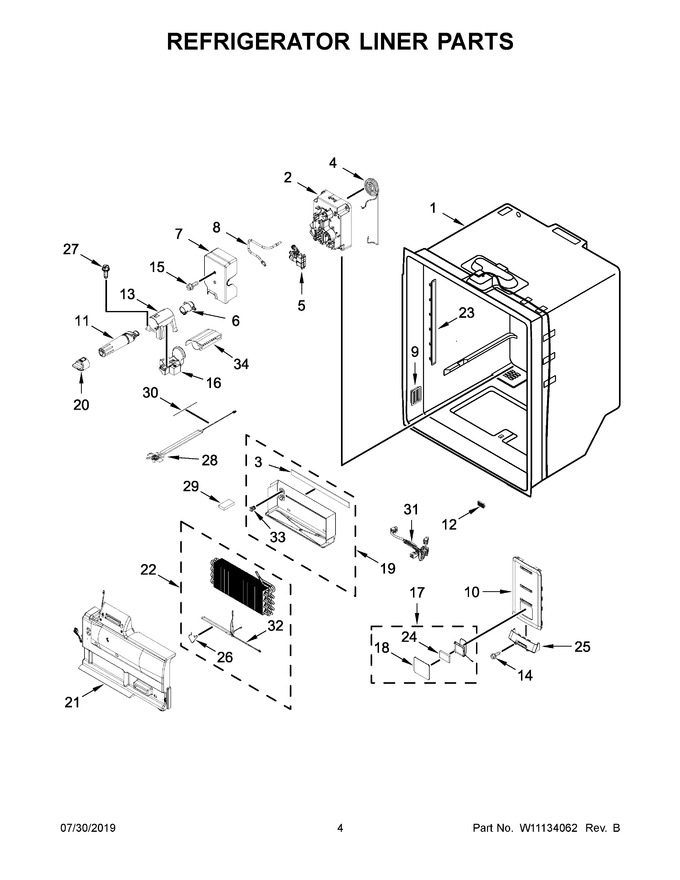

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W10708473 | Housing, Water Tank |
|
$ 96.80 | |||||
| 3 | W11159756 | Gasket, Heat Shield (Replaces: W10921470) |
|
- | |||||
| 4 | W11024082 | Reservoir, Water |
|
Immediately | $ 162.91 | ||||
| 5 | W11535162 | Valve, Dual Water (Replaces: W10908836) |
|
Immediately | $ 126.64 | ||||
| 6 | W11024083 | Housing, Water Filter |
|
Immediately | $ 198.11 | ||||
| 7 | W10900010 | Cover, Water Valve |
|
Immediately | $ 101.45 | ||||
| 8 | W10789102 | Tube, Water Filter |
|
Immediately | $ 104.36 | ||||
| 9 | W10718061 | Cover, Cooling Duct |
|
$ 92.01 | |||||
| 10 | W11312192 | Cover, Tower (Replaces: W11259413) |
|
- | |||||
| 11 | EDR2RXD1B | Filter, Water (Replaces: W10680605) |
|
Immediately | $ 49.99 | ||||
| 12 | W10311524 | Filter, Air (Replaces: W10315189) |
|
Immediately | $ 12.91 | ||||
| 13 | W11189600 | Bracket, Filter (Replaces: W10708474) |
|
$ 66.98 | |||||
| 14 | W10119266 | Screw |
|
$ 11.44 | |||||
| 15 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 7.90 | ||||
| 16 | W10839501 | Insulation, Under Filter |
|
$ 51.48 | |||||
| 17 | W11803610 | Assembly, Air Filter (Replaces: W10766881) |
|
$ 78.01 | |||||
| 18 | W10704470 | Cover, Air Filter |
|
- | |||||
| 19 | W11090564 | Assembly, Heat Shield |
|
$ 63.46 | |||||
| 20 | W11189114 | Cap, Filter (Replaces: W10719253) |
|
Immediately | $ 42.00 | ||||
| 21 | W11395639 | Assembly, Evaporator Cover (includes Fan Motor, Wire Assembly And Thermistor) (Replaces: W10900033) |
|
$ 387.05 | |||||
| 22 | W11291123 | Assembly, Evaporator (Replaces: W11130330) |
|
Immediately | $ 329.84 | ||||
| 23 | W11214258 | Assembly, Side Lamp (Replaces: W10901220) |
|
$ 169.41 | |||||
| 24 | W10673897 | Insulator, Foam (Replaces: W10831305) |
|
$ 29.28 | |||||
| 25 | W10716179 | Base, Tower Cover |
|
- | |||||
| 26 | W10909562 | Clip, Evaporator Heater |
|
$ 22.09 | |||||
| 27 | WP489474 | Screw (Replaces: 12990501) |
|
Immediately | $ 7.70 | ||||
| 28 | W11024084 | Heater, Filter (Replaces: W10877761) |
|
Immediately | $ 126.80 | ||||
| 29 | W10818463 | Gasket, Evaporator Air Dam |
|
$ 24.98 | |||||
| 30 | W10910632 | Gasket, Sealing (Replaces: W10901792) |
|
- | |||||
| 31 | W11396537 | Assembly, Manifold Jumper Wire (Replaces: W10906507) |
|
$ 118.94 | |||||
| 32 | W11291124 | Heater, Defrost (Replaces: W11127384) |
|
Immediately | $ 143.00 | ||||
| 33 | 10623002 | Clip, Evaporator |
|
$ 10.90 | |||||
| 34 | W11307147 | Cover, Filter (Replaces: W11190705) |
|
$ 92.79 | |||||
| NI | W10871610 | Assembly, Valve Wire |
|
$ 133.25 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
