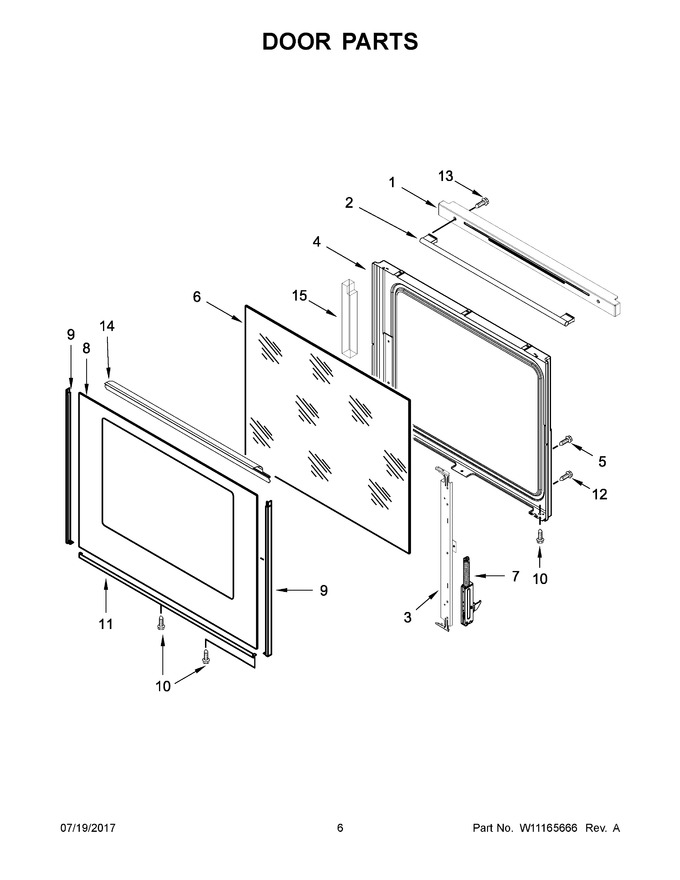

04 - Door Parts
05 - Drawer Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10294855 | Trim, Vent (black) |
|
Immediately | $ 127.84 | ||||
| 2 | W10550997 | Assembly, Door Handle (stainless) |
|
$ 228.13 | |||||
| 3 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 120.38 | |||||
| 4 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 298.36 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 267.26 | |||||
| 7 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 57.42 | ||||
| 8 | W10709015 | Assembly, Outer Door (black) |
|
- | |||||
| 9 | W10334004 | Trim, Door Side (black) |
|
$ 210.38 | |||||
| 10 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 11 | W10334031 | Trim, Door (black) |
|
$ 70.07 | |||||
| 12 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 13 | WPW10317886 | Screw (Replaces: W10317886) |
|
Immediately | $ 7.38 | ||||
| 14 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 213.34 | ||||
| 15 | W11688565 | Insulation, Door (Replaces: W10772958) |
|
$ 24.32 |
