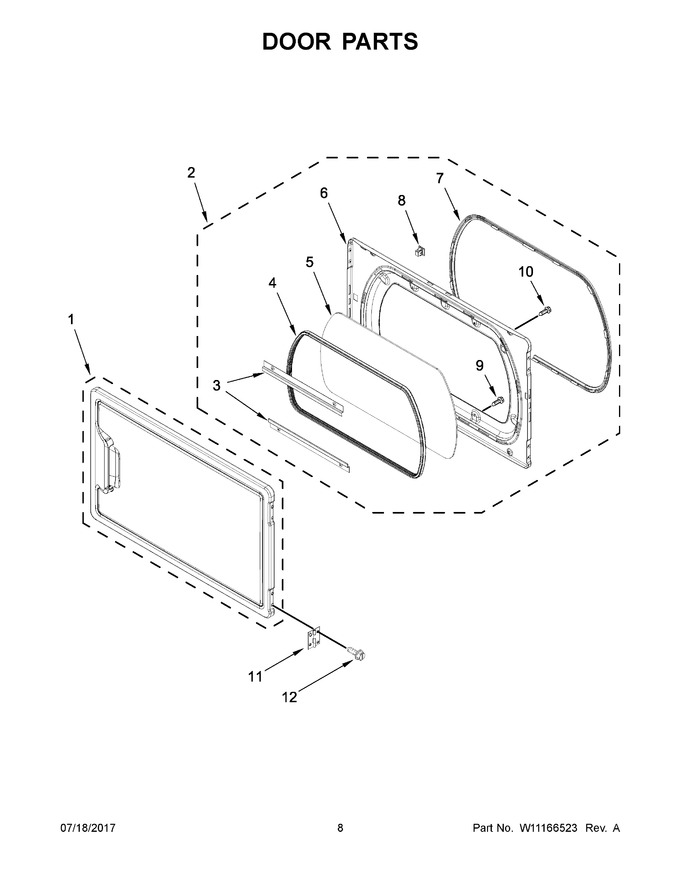

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Door Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11125136 | Assembly, Outer Door (black) (Replaces: W11091887) |
|
$ 240.25 | |||||
| 2 | W11125137 | Assembly, Inner Door (chrome Shadow) (Replaces: W11090744) |
|
$ 185.62 | |||||
| 3 | W10822054 | Retainer, Window (Replaces: 8519354) |
|
Immediately | $ 16.21 | ||||
| 4 | W11676508 | Seal, Window (Replaces: W10284122) |
|
$ 25.53 | |||||
| 5 | WPW10284121 | Glass, Door (Replaces: W10284121) |
|
$ 237.25 | |||||
| 6 | W11163334 | Door, Inner (chrome Shadow) (Replaces: W11090743) |
|
- | |||||
| 7 | WPW10354795 | Seal, Door (Replaces: W10354795) |
|
$ 117.11 | |||||
| 8 | 279570 | Assembly, Door Catch (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 9 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 7.67 | |||||
| 10 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 7.53 | |||||
| 11 | WPW10279703 | Assembly, Hinge & Pin (silver) (Replaces: W10279703) |
|
$ 68.25 | |||||
| 12 | WPW10273971 | Screw (Replaces: W10192860) |
|
Immediately | $ 6.80 |
