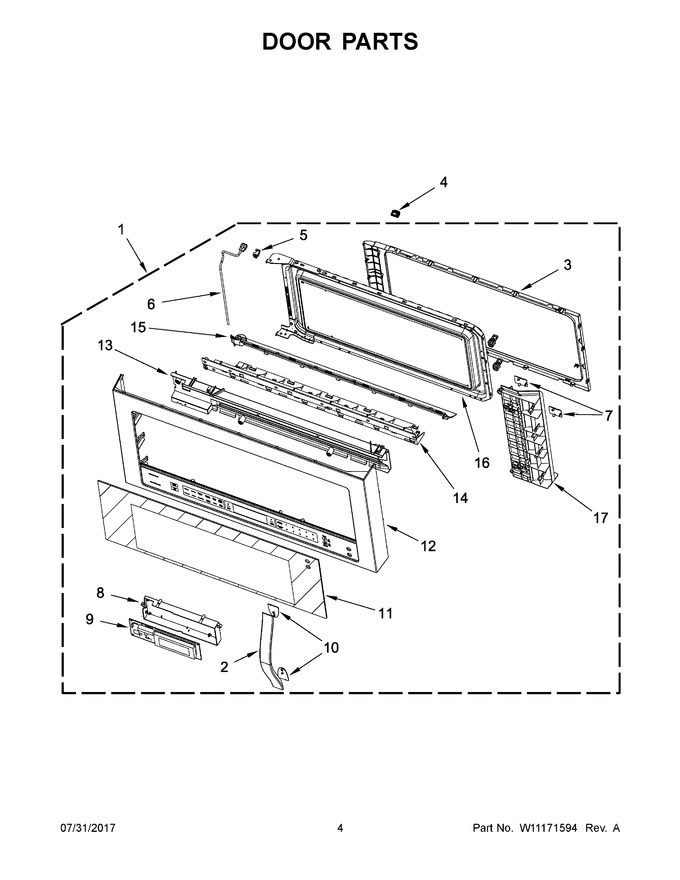

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10893442 | Door, Complete (stainless) |
|
- | |||||
| 2 | W10478162 | Handle (stainless) |
|
- | |||||
| 3 | W10647772 | Frame, Inner |
|
$ 90.28 | |||||
| 4 | W10643974 | Stopper, Door |
|
$ 20.39 | |||||
| 5 | W10770972 | Holder, Door Cable |
|
- | |||||
| 6 | W10508745 | Wire, Door Control Cable |
|
$ 26.10 | |||||
| 7 | W10478657 | Cover, Screw (black) |
|
Immediately | $ 20.21 | ||||
| 8 | W10770970 | Holder, Ui |
|
- | |||||
| 9 | W11367418 | Control (Replaces: W10881549) |
|
- | |||||
| 10 | W10478213 | Cushion, Handle |
|
- | |||||
| 11 | W10478675 | Glass, Outer (stainless) |
|
- | |||||
| 12 | W10913377 | Assembly, Door Frame (stainless) (Replaces: W10846249) |
|
- | |||||
| 13 | W10478222 | Cover, Ui |
|
- | |||||
| 14 | W10476546 | Bracket, Door |
|
- | |||||
| 15 | W10476550 | Frame, Back Decorating (black) |
|
- | |||||
| 16 | W10893419 | Body, Door (with Glass) |
|
- | |||||
| 17 | W11699920 | Bracket, Outer Door (black) (Replaces: W10734943) |
|
$ 77.56 |
