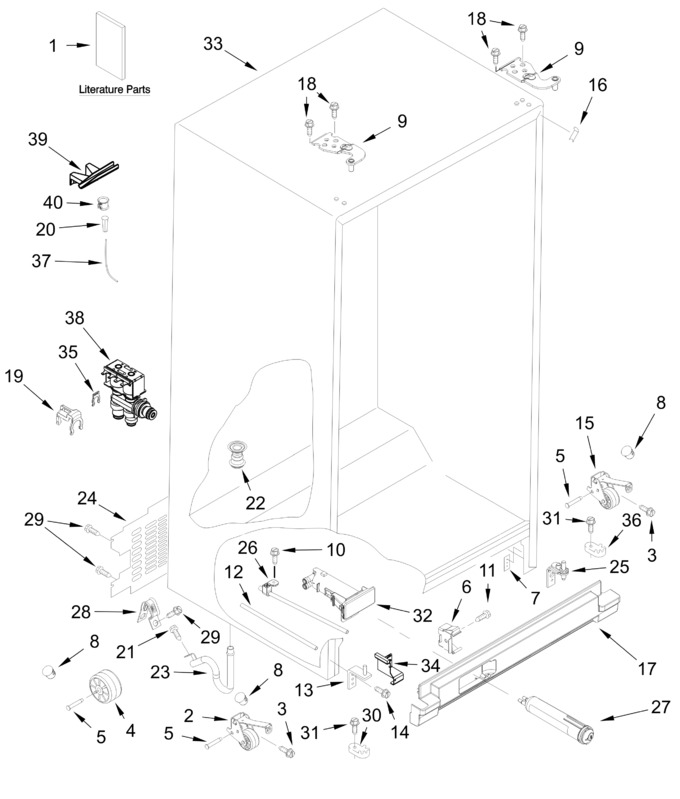

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	ARI4741983F61CAC445F12C0C1FD1B613C1		Literature Parts		Appelez-nous	-
2	WPW10304660		Roller Assembly (left Hand)   (Replaces: W10304660)			Immediately	$ 66.51
3	W11544561		Screw   (Replaces: 2152958)				$ 13.28
4	WPW10475495		Roller   (Replaces: 2150304)			Immediately	$ 28.85
5	W11594405		Axle, Roller   (Replaces: W11365774)			Immediately	$ 17.21
6	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 7.30
7	W11036715		Plate, Screw (refrigerator)		Appelez-nous	-
8	W11594405		Plug, Roller Axle Hole   (Replaces: W11365768)			Immediately	$ 17.21
9	W11579508		Hinge, Top (refrigerator, White)   (Replaces: W10922200)				$ 34.90
10	WPW10296816		Screw   (Replaces: W10296816)				$ 7.25
11	WP489128		Screw   (Replaces: 8281149)				$ 10.26
12	W11162036		Tube, Filter Outlet   (Replaces: W10900447)				$ 108.41
13	W11687636		Hinge Assembly, Bottom (freezer)   (Replaces: W11093938)				$ 65.60
14	WP489497		Screw   (Replaces: 3400113)			Immediately	$ 26.18
15	WPW10304659		Roller Assembly (right Hand)   (Replaces: W10304659)			Immediately	$ 66.51
16	W11219639		Filler, Corner (white)				$ 10.69
17	W11282545		Grille, Filter (white)   (Replaces: W11226340)		Appelez-nous	-
18	WPW10308750		Screw (white)   (Replaces: W10308750)				$ 65.96
19	W11252188		Double Lock Ring				$ 18.77
20	4387491		Insert, Tube   (Replaces: 2181939)				$ 7.41
21	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.54
22	W11566763		Fitting, Drain   (Replaces: 2304888)			Immediately	$ 48.11
23	W11512417		Extension, Drain Fitting   (Replaces: W10153550)				$ 32.88
24	W11778265		Cover, Unit   (Replaces: W10904634)				$ 86.47
25	W11399415		Hinge Assembly, Bottom (refrigerator - Also Includes Door Cam)   (Replaces: W11097327)				$ 65.95
26	W11162040		Tube, Filter Inlet   (Replaces: W10900449)				$ 109.08
27	EDR1RXD1B		Filter, Water   (Replaces: W10735398)			Immediately	$ 49.99
28	W11234470		Clamp, Power Cord   (Replaces: W11242280)				$ 19.91
29	WPW10141645		Screw   (Replaces: W10141645)				$ 7.25
30	W11679635		Closer, Door (freezer)   (Replaces: W11095731)			Immediately	$ 12.36
31	WP489483		Screw   (Replaces: W10142234)				$ 10.27
32	W11162041		Housing, Water Filter (white)   (Replaces: W11036340)			Immediately	$ 198.11
33	ARI94342C74144DD1D8059B1C42D7D53A15		Cabinet (not A Servicable Part)		Appelez-nous	-
34	W10897565		Bracket, Wire Mounting				$ 64.70
35	W11676611		Locking Ring (1/4)   (Replaces: W11175632)				$ 13.40
36	W11398787		Closer, Lower Cam Door (refrigerator)   (Replaces: W10905504)				$ 13.15
37	W10823511		Tube, Water   (Replaces: W10357076)			Immediately	$ 29.17
38	WPW10179146		Assembly, Filter Valve   (Replaces: W10179146)			Immediately	$ 104.95
39	W11505385		Chute, Water   (Replaces: W11444726)				$ 31.79
40	W10861184		Clamp, Tube   (Replaces: W10329003)				$ 59.31
	W11239613		Energy Guide		Appelez-nous	-
	W11125074		Tech Sheet (english)		Appelez-nous	-
	W11579508		Hinge, Top (freezer, White)   (Replaces: W10922201)				$ 34.90
	W11678575		Locking Ring (5/16)   (Replaces: W11175631)				$ 13.41
	W10904380		Plate, Screw (freezer)				$ 23.36
	W11159298		Use And Care Guide		Appelez-nous	-
	W11125076		Tech Sheet (french)		Appelez-nous	-
