SELECT A DIAGRAM
01 - Cover Sheet
02 - Cooktop Parts

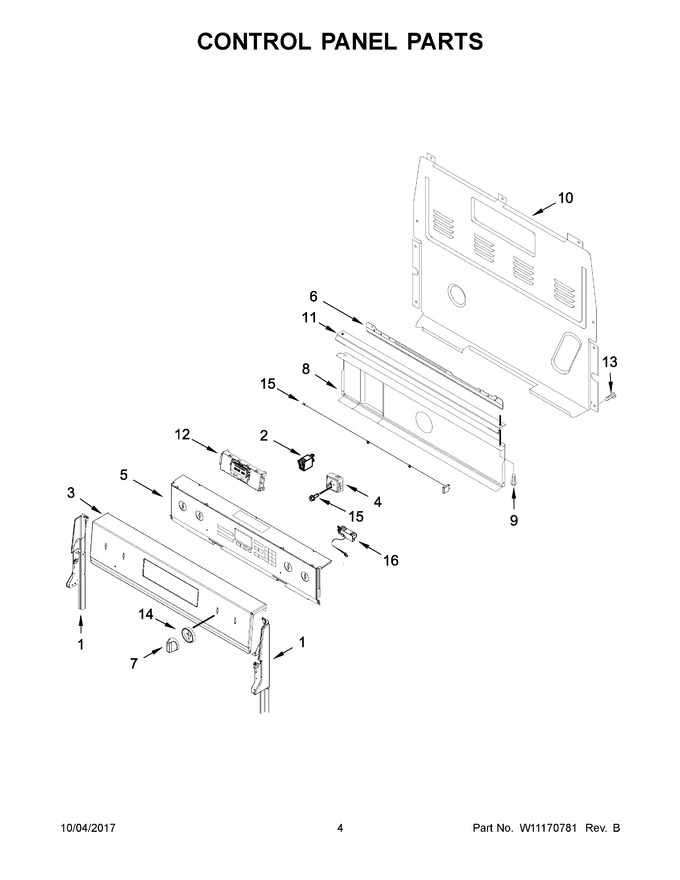

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11213290 | Endcap (black (left)) (Replaces: W10869993) |
|
$ 312.99 | |||||
| 2 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 2 | W10902289 | Bracket, Control |
|
- | |||||
| 3 | W11165617 | Console (stainless) (Replaces: W10869991) |
|
$ 485.37 | |||||
| 4 | W11129442 | Switch, Infinite (left Front) (Replaces: W10437097) |
|
Immediately | $ 98.78 | ||||
| 5 | W11178664 | Bracket, Control (includes Overlay) (black) (Replaces: W10856353) |
|
$ 702.86 | |||||
| 5 | W10856357 | Panel, Backer |
|
- | |||||
| 6 | W11443964 | Bracket, Eye Brow (black) (Replaces: W11046516) |
|
$ 200.19 | |||||
| 7 | W11416802 | Knob (stainless) (Replaces: W10917219) |
|
Immediately | $ 67.44 | ||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 12 | W11165552 | Control, Maxwell (Replaces: W10871059) |
|
Immediately | $ 451.44 | ||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | W10918419 | Bezel (stainless) |
|
Immediately | $ 67.96 | ||||
| 15 | W11113849 | Antenna (Replaces: W11097891) |
|
$ 195.62 | |||||
| 16 | W11165979 | Assembly, Wifi (Replaces: W10888670) |
|
$ 149.95 | |||||
| 16 | W10856359 | Membrane, Switch (black) |
|
- | |||||
| 17 | W11165979 | Assembly, Wifi (Replaces: W10888670) |
|
$ 149.95 | |||||
| 18 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 5.63 | ||||
| 19 | WP8523265 | Hot Surface Indicator (Replaces: W10432504) |
|
Immediately | $ 91.76 | ||||
| 14A | W10917223 | Bezel (black Stainless) |
|
- | |||||
| 1A | W11213292 | Endcap (black (right)) (Replaces: W10869995) |
|
$ 64.49 | |||||
| 3A | W11165616 | Console (black Stainless) (Replaces: W10881625) |
|
$ 485.40 | |||||
| 4A | W10857622 | Switch, Infinite (right Front) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 4B | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 4C | W10917724 | Switch, Infinite (left Rear) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 7A | W11674369 | Knob (black Stainless) (Replaces: W10917220) |
|
$ 19.39 |
