View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts

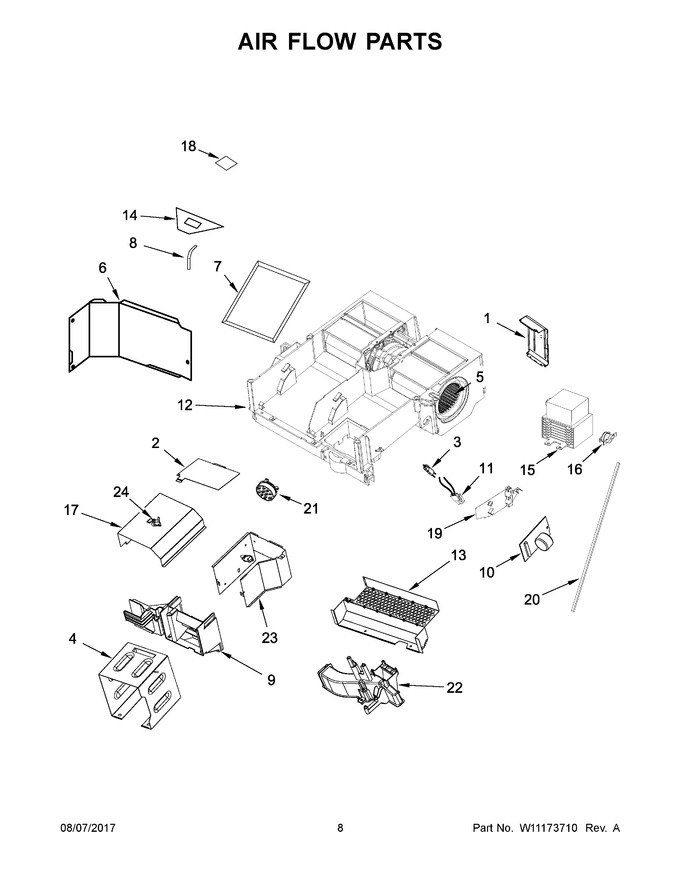

05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10631698 | Deflector, Air |
|
- | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 8.25 | |||||
| 3 | W10709921 | Lamp, Halogen |
|
Immediately | $ 19.10 | ||||
| 4 | W10556824 | Housing, Damper |
|
- | |||||
| 5 | W11613599 | Motor, Fan (Replaces: W10830695) |
|
Immediately | $ 180.37 | ||||
| 6 | W10869224 | Plate, Air Guide |
|
- | |||||
| 7 | 8206230A | Filter, Charcoal (Replaces: 8206230) |
|
Immediately | $ 18.19 | ||||
| 8 | W10557537 | Sensor, Convection |
|
$ 74.63 | |||||
| 9 | W10892383 | Duct, Cavity (front) |
|
- | |||||
| 10 | WPW10531156 | Board, Filter (Replaces: W10531156) |
|
Immediately | $ 51.19 | ||||
| 11 | W10670896 | Harness, Fade In / Fade Out |
|
- | |||||
| 12 | W10632409 | Baseplate, Air Guide |
|
$ 92.12 | |||||
| 13 | W10629803 | Shield, Finger (includes Seal) |
|
$ 32.24 | |||||
| 14 | W10810142 | Socket, Motor Wire |
|
- | |||||
| 15 | W10818686 | Magnetron (Replaces: W10754514) |
|
Immediately | $ 315.81 | ||||
| 16 | W11553234 | Thermostat, Magnetron (Replaces: W10591803) |
|
$ 39.32 | |||||
| 17 | W10533112 | Outlet, Cavity (back) |
|
- | |||||
| 18 | W10531724 | Glass, Lamp |
|
Immediately | $ 31.39 | ||||
| 19 | W10869222 | Cover, Duct (right) |
|
- | |||||
| 20 | W10571180 | Seal, Foam |
|
$ 17.21 | |||||
| 21 | W10557536 | Sensor, Humidity |
|
$ 114.57 | |||||
| 22 | W10652714 | Assembly, Air Guide Grill |
|
- | |||||
| 23 | W10533483 | Duct, Cavity (rear) |
|
- | |||||
| 24 | W11661583 | Thermostat, Cavity (Replaces: W10654514) |
|
$ 56.97 |
