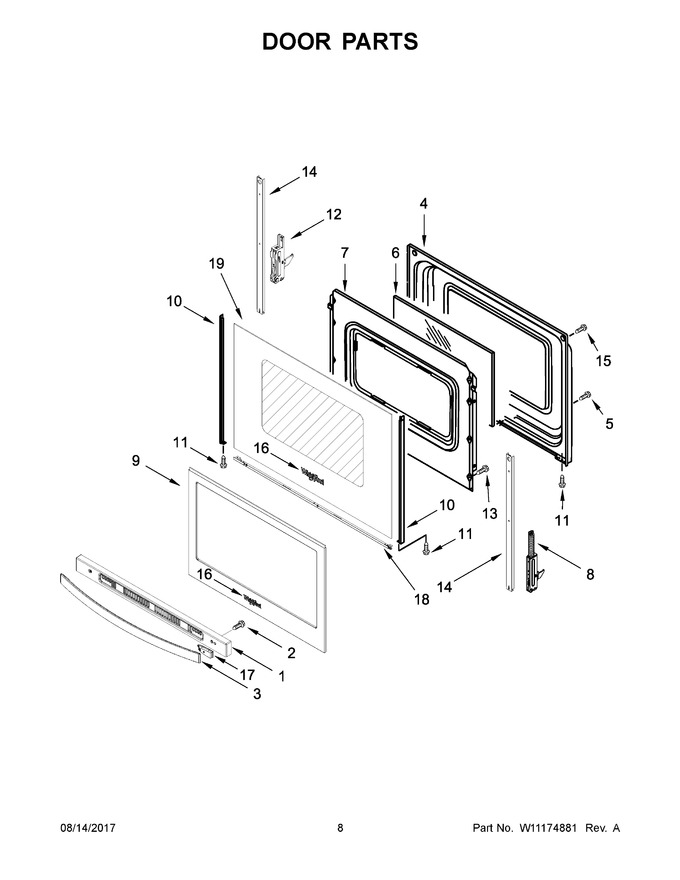

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10310922 | Trim, Vent (black) (Replaces: W10310922) |
|
Immediately | $ 157.83 | ||||
| 2 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.44 | ||||
| 3 | W11107394 | Handle, Door (black) (Replaces: W11022643) |
|
$ 206.51 | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 6 | W11399628 | Glass, Inner (Replaces: W10620754) |
|
$ 154.51 | |||||
| 7 | W11685635 | Retainer, Insulation (Replaces: 9761505) |
|
$ 169.46 | |||||
| 8 | WPW10299225 | Hinge, Active (black And White Models) (Replaces: W10299225) |
|
Immediately | $ 90.51 | ||||
| 9 | W11219379 | Glass Assembly, Outer Door (stainless) (Replaces: W10851726) |
|
$ 407.62 | |||||
| 10 | W10761018 | Trim, Side (black (left)) (Replaces: W10746436) |
|
Immediately | $ 49.32 | ||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 12 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 63.67 | ||||
| 13 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 14 | W11502236 | Strap, Door (Replaces: W10544179) |
|
Immediately | $ 24.91 | ||||
| 15 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.42 | ||||
| 16 | W11178521 | Nameplate (Replaces: W10884775) |
|
Immediately | $ 56.82 | ||||
| 17 | W11037027 | Standoff, Handle (black) |
|
- | |||||
| 18 | WP8523177 | Trim, Lower Door (black) (Replaces: 8523177) |
|
$ 149.27 | |||||
| 19 | W11702167 | Glass Assembly, Outer Door (black) (Replaces: W10884159) |
|
Immediately | $ 166.26 | ||||
| 10A | W10761014 | Trim, Side (black (right)) (Replaces: W10746435) |
|
Immediately | $ 65.66 | ||||
| 10B | WP8523172 | Trim, Side (white (left)) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 10C | WP8523166 | Trim, Side (white (right)) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 17A | W11590861 | Standoff, Handle (white) (Replaces: W11037028) |
|
Immediately | $ 179.24 | ||||
| 18A | W11594186 | Trim, Lower Door (white) (Replaces: 8523175) |
|
Immediately | $ 55.23 | ||||
| 19A | WPW10409945 | Glass Assembly, Outer Door (white) (Replaces: W10409945) |
|
Immediately | $ 245.12 | ||||
| 1A | W10817433 | Trim, Vent (white) (Replaces: W10310920) |
|
Immediately | $ 162.27 | ||||
| 3A | W11107407 | Handle, Door (white) (Replaces: W11022644) |
|
$ 213.73 | |||||
| 3B | W11110499 | Handle, Door (stainless) (Replaces: W10875206) |
|
Immediately | $ 169.38 | ||||
| 8A | WPW10299226 | Hinge, Active (stainless Model) (Replaces: W10299226) |
|
Immediately | $ 83.84 |
