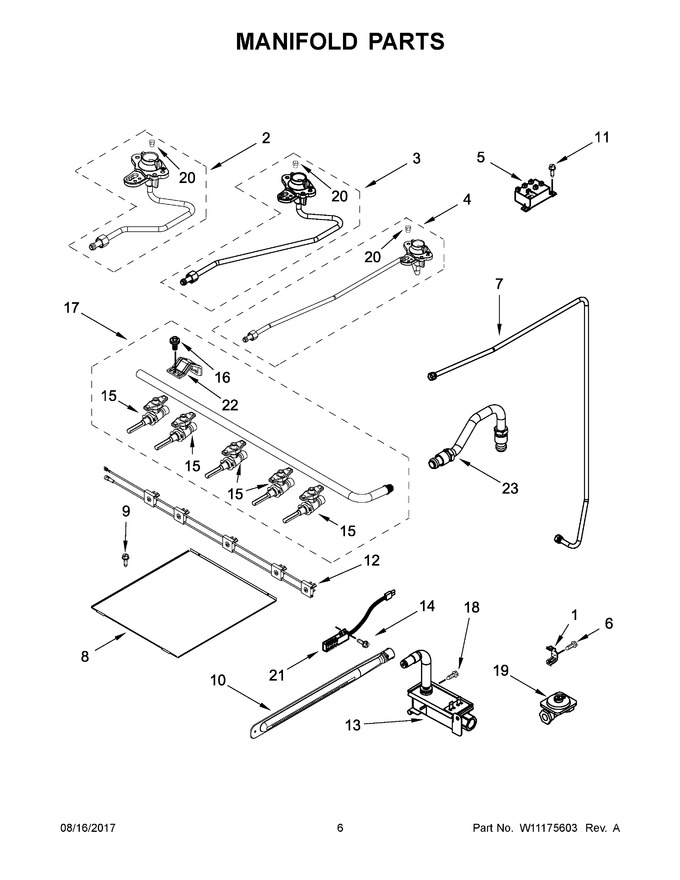

04 - Manifold Parts


05 - Chassis Parts


06 - Oven And Broiler Parts


07 - Door Parts


08 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98007410		Bracket, Regulator		Appelez-nous	-
2	W11028738		Assembly, Tubing (left Front)   (Replaces: W10514425)				$ 71.77
3	W10514429		Assembly, Tubing (center)		Appelez-nous	-
4	W11162117		Assembly, Tubing (left Rear)   (Replaces: W10514428)				$ 100.67
5	W11565127		Spark Module   (Replaces: W10110523)				$ 209.43
6	WP98007225		Screw   (Replaces: 98007225)				$ 6.57
7	W11628651		Tubing, Manifold To Regulator   (Replaces: W10619922)		Appelez-nous	-
8	W11688713		Spread, Flame (bake)   (Replaces: W10670196)		Appelez-nous	-
9	WP3400832		Screw (black)   (Replaces: 98006726)			Immediately	$ 7.36
10	W11220387		Burner, Oven   (Replaces: W10650358)				$ 178.72
11	W10837731		Screw   (Replaces: W10493726)				$ 7.47
12	W10836473		Harness, Switch   (Replaces: W10548356)				$ 86.11
13	WP98014893		Valve, Oven   (Replaces: 98014893)				$ 148.82
14	W11676351		Screw   (Replaces: 98005659)		Appelez-nous	-
15	W10814916		Valve, Saddle (left Front & Right Front)   (Replaces: W10615569)				$ 207.46
16	98017517		Screw		Appelez-nous	-
17	W10538763		Assembly, Manifold		Appelez-nous	-
18	98013634		Screw		Appelez-nous	-
19	W11346659		Regulator   (Replaces: W10633327)				$ 251.26
20	WPW10347414		Orifice (15k) (left Front & Right Front)   (Replaces: W10347414)				$ 81.45
21	W11176454		Igniter, Hot Surface   (Replaces: W10914411)				$ 137.38
22	W10574737		Bracket, Valve		Appelez-nous	-
23	W11684515		Tubing (regulator To Oven Valve)   (Replaces: W10512963)		Appelez-nous	-
15A	W10861716		Valve, Saddle (left Rear & Center)   (Replaces: W10615568)		Appelez-nous	-
15B	W11105201		Valve, Saddle (right Rear)   (Replaces: W10615567)		Appelez-nous	-
20A	WPW10170507		Orifice (8k) (center)   (Replaces: W10170507)				$ 88.07
20B	WPW10170508		Orifice (9.5k) (left Rear)   (Replaces: W10170508)				$ 85.69
20C	WPW10170506		Orifice, Natural (5k) (right Rear)   (Replaces: W10170506)				$ 88.07
2A	W11050487		Assembly, Tubing (right Front)   (Replaces: W10514426)				$ 97.27
4A	W11167099		Assembly, Tubing (right Rear)   (Replaces: W10514424)				$ 28.04
NI	W10622750		Cable, Spark (black)		Appelez-nous	-
NI	WPW10619560		Kit, Lp Conversion   (Replaces: W10619560)				$ 16.73
NI	W10623833		Cable, Spark (natural)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
