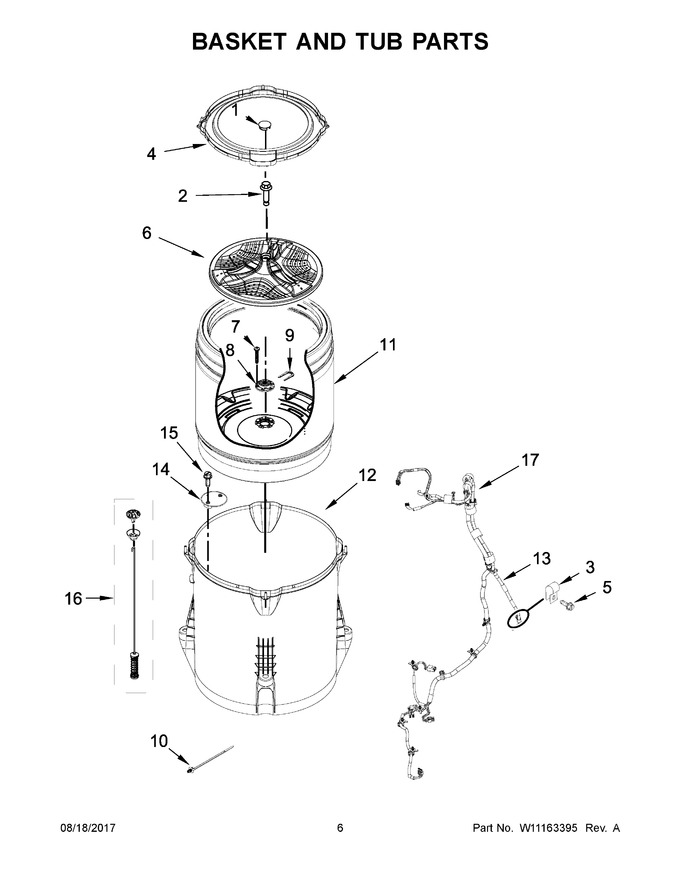

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10793634 | Dispenser Assembly (Replaces: W10777969) |
|
Immediately | $ 72.51 | ||||
| 2 | W10752187 | Screw (Replaces: W10625252) |
|
Immediately | $ 8.43 | ||||
| 3 | W10005430 | Clamp, Cable |
|
Immediately | $ 8.58 | ||||
| 4 | W10849477 | Tub Ring (Replaces: W10578859) |
|
$ 175.21 | |||||
| 5 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 7.92 | ||||
| 6 | W11550891 | Agitator (Replaces: W10882734) |
|
Immediately | $ 102.48 | ||||
| 7 | WP8533953 | Screw (Replaces: 8533953) |
|
Immediately | $ 6.80 | ||||
| 8 | W10528947 | Hub - Driven, Basket (Replaces: W10396887) |
|
Immediately | $ 40.16 | ||||
| 9 | W11385424 | Retainer, Drive Block (Replaces: W10402178) |
|
Immediately | $ 11.67 | ||||
| 10 | WPW10339879 | Cable Tie (Replaces: W10267532) |
|
$ 7.47 | |||||
| 11 | W10752719 | Basket Assembly (Replaces: W10586077) |
|
Immediately | $ 396.29 | ||||
| 12 | W11219115 | Tub (Replaces: W10512161) |
|
$ 348.38 | |||||
| 13 | WP353244 | Hose, Pressure Switch (Replaces: W10297441) |
|
Immediately | $ 78.00 | ||||
| 14 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 58.73 | |||||
| 15 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.43 | ||||
| 16 | W11130362 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushings And Suspension Balls) (Replaces: W11033491) |
|
Immediately | $ 151.93 | ||||
| 17 | W11037732 | Harness, Lower |
|
- |
