SELECT A DIAGRAM

01 - Cover Sheet

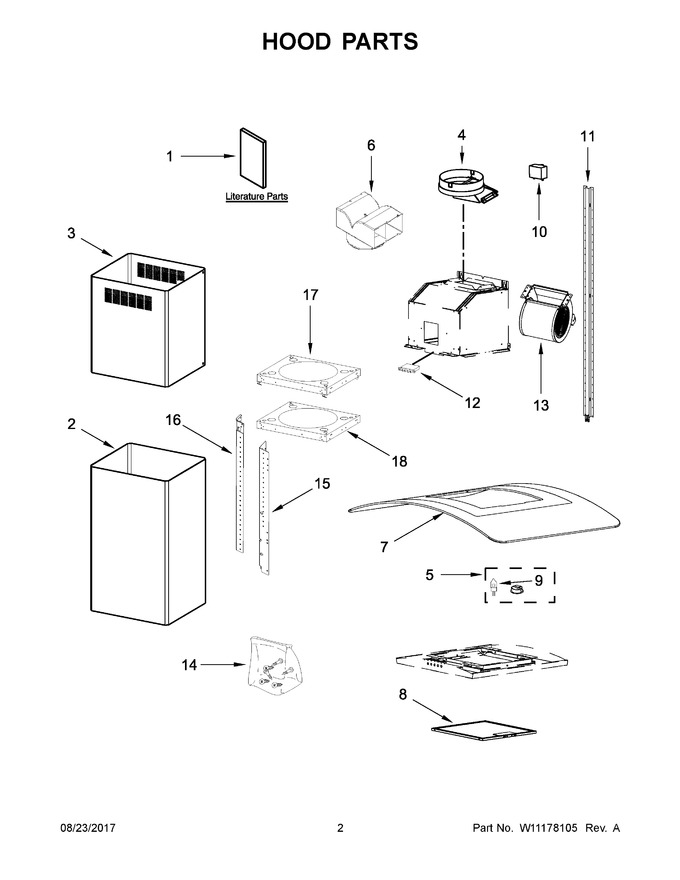

02 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10526058		Use And Care Guide		Appelez-nous	-
2	W11321565		Chimney, Lower   (Replaces: W10351830)				$ 358.34
3	W10883262		Chimney, Upper		Appelez-nous	-
4	W10847841		Damper, Hood   (Replaces: W10592040)				$ 147.46
5	WPW10562734		Assembly, Light Puck   (Replaces: W10562734)			Immediately	$ 125.53
6	WPW10562744		Diverter, Air Duct   (Replaces: W10562744)				$ 186.10
7	W10313849		Glass (36")				$ 215.96
8	W10169961A		Filter, Grease   (Replaces: W10870878)			Immediately	$ 39.53
9	WPW10571723		Bulb, Halogen 40 Watts   (Replaces: W10571723)			Immediately	$ 26.18
10	W11328673		Capacitor   (Replaces: W10735734)			Immediately	$ 59.00
11	W10293054		Support, Vertical Duct Cover				$ 30.63
12	W10861722		Control, Motor				$ 213.40
13	W10894803		Motor, Fan				$ 338.56
14	W11178103		Hardware, Installation   (Replaces: W11178069)		Appelez-nous	-
15	W10351905		Support, Lower Vertical   (Replaces: W10313848)		Appelez-nous	-
16	W10293063		Support, Upper Vertical				$ 77.67
17	W10297052		Support, Horizontal Upper		Appelez-nous	-
18	W10293065		Support, Horizontal Lower		Appelez-nous	-
NI	W10688278		Accessories, Kit, Chimney Extension				$ 875.15
NI	W10446915		Accessories, Kit, 6" Makeup Air				$ 316.52
NI	W10412939		Accessories, Kit, Charcoal Filter (for Non-vented Installations Only)			Immediately	$ 70.33
NI	W11430929		Accessories, Kit, Recirculation (for Non-vented Installations Only)   (Replaces: W10680067)				$ 153.23

    View Diagram in Separate Window       Print Part List
