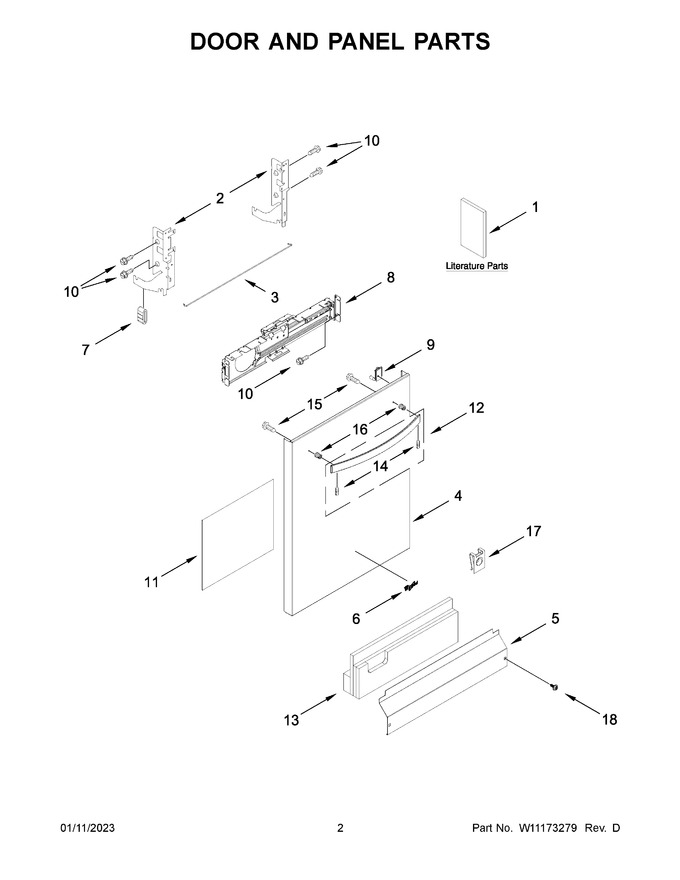

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11444533 | Energy Guide |
|
- | |||||
| 2 | W11806565 | Arm, Hinge (left Hand) (Replaces: W11484017) |
|
Immediately | $ 142.39 | ||||
| 3 | W10850371 | Stiffener, Door (Replaces: W10803537) |
|
Immediately | $ 32.88 | ||||
| 4 | W11174870 | Panel, Front (includes 6, 7, 9, 15 & 16) (black) (Replaces: W10917586) |
|
Immediately | $ 392.62 | ||||
| 5 | W11763736 | Access Panel (black) (Replaces: W10852733) |
|
Immediately | $ 42.25 | ||||
| 6 | W11178521 | Badge (Replaces: W10884775) |
|
Immediately | $ 63.13 | ||||
| 7 | WP8268961 | Sleeve, Friction (Replaces: 8268961) |
|
Immediately | $ 6.68 | ||||
| 8 | W11116870 | Bracket, Control (Replaces: W10641745) |
|
$ 89.95 | |||||
| 9 | W11036316 | Light, Pipe |
|
$ 72.12 | |||||
| 10 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.80 | ||||
| 11 | W11126003 | Insulation, Front Panel (Replaces: W10315897) |
|
Immediately | $ 65.25 | ||||
| 12 | W11572098 | Handle Assembly (black) (Replaces: W11439701) |
|
$ 110.30 | |||||
| 13 | W10831329 | Insulation, Four Layer (Replaces: W10518815) |
|
Immediately | $ 43.30 | ||||
| 14 | W10907991 | Screw, Set (Replaces: W10693137) |
|
$ 7.55 | |||||
| 15 | W10826179 | Screw (Replaces: W10316572) |
|
Immediately | $ 7.55 | ||||
| 16 | W11157086 | Stud, Mounting (Replaces: W11049903) |
|
Immediately | $ 8.87 | ||||
| 17 | W10910629 | U-nut (Replaces: W10853886) |
|
$ 8.64 | |||||
| 18 | WP302868 | Screw (black) (Replaces: 302868) |
|
Immediately | $ 8.18 | ||||
| 12A | W11757259 | Handle Assembly (white) (Replaces: W11439697) |
|
$ 93.22 | |||||
| 12B | W11685315 | Handle Assembly (stainless) (Replaces: W11439703) |
|
Immediately | $ 102.81 | ||||
| 12C | W11685317 | Handle Assembly (black Stainless) (Replaces: W11439696) |
|
$ 163.85 | |||||
| 18A | WP3400836 | Screw (white) (Replaces: 3400836) |
|
$ 8.10 | |||||
| 1A | W11384187 | Owners Manual |
|
- | |||||
| 1B | W11427962 | Tech Sheet |
|
- | |||||
| 2A | W11806608 | Arm, Hinge (right Hand) (Replaces: W11484018) |
|
Immediately | $ 142.24 | ||||
| 4A | W11174871 | Panel, Front (includes 6, 7, 9, 15 & 16) (white) (Replaces: W10917587) |
|
$ 368.66 | |||||
| 4B | W11174872 | Panel, Front (includes 6, 7, 9, 15 & 16) (stainless) (Replaces: W10917591) |
|
Immediately | $ 376.81 | ||||
| 4C | W11174873 | Panel, Front (includes 6, 7, 9, 15 & 16) (black Stainless) (Replaces: W10917592) |
|
$ 373.51 | |||||
| 5A | W10852732 | Access Panel (white) |
|
- |
