01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts

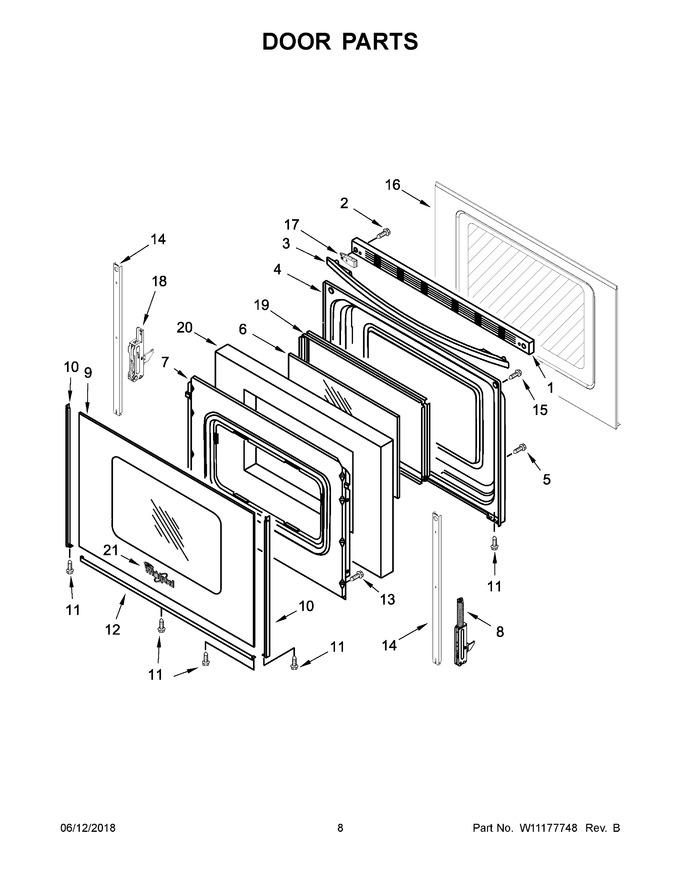

05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10817433 | Trim, Top (white) (Replaces: W10310920) |
|
Immediately | $ 162.27 | ||||
| 2 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.44 | ||||
| 3 | W11107407 | Handle, Door (white) (Replaces: W11022644) |
|
$ 213.73 | |||||
| 4 | WP9761344 | Liner, Door (Replaces: 9761344) |
|
Immediately | $ 335.60 | ||||
| 5 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 8.31 | ||||
| 6 | WP8053948 | Glass, Inner (Replaces: 9758162) |
|
Immediately | $ 208.85 | ||||
| 7 | W11539580 | Retainer, Insulation (Replaces: 9761357) |
|
$ 209.98 | |||||
| 8 | WPW10299224 | Hinge, Active (with Spring) (stainless Model) (Replaces: W10299224) |
|
Immediately | $ 69.65 | ||||
| 9 | WPW10409945 | Glass Assembly, Outer Door (white) (Replaces: W10409945) |
|
Immediately | $ 257.39 | ||||
| 10 | WP8523172 | Trim, Side (white (left)) (Replaces: 8523172) |
|
Immediately | $ 66.09 | ||||
| 11 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 12 | W11594186 | Trim, Lower (white) (Replaces: 8523175) |
|
Immediately | $ 55.23 | ||||
| 13 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 14 | W11502236 | Strap, Door (Replaces: W10544179) |
|
Immediately | $ 24.91 | ||||
| 15 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.42 | ||||
| 16 | W11219379 | Glass Assembly, Outer Door (stainless) (Replaces: W10851726) |
|
$ 407.62 | |||||
| 17 | W11590861 | Standoff, Handle (white) (Replaces: W11037028) |
|
Immediately | $ 179.24 | ||||
| 18 | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 66.85 | ||||
| 19 | WPW10316950 | Frame, Glass (Replaces: W10316950) |
|
Immediately | $ 81.08 | ||||
| 20 | WPW10278991 | Insulation, Door Strip (Replaces: W10278991) |
|
Immediately | $ 91.23 | ||||
| 21 | W11178521 | Nameplate (Replaces: W10884775) |
|
Immediately | $ 58.63 | ||||
| 10A | WP8523166 | Trim, Side (white (right)) (Replaces: 8523166) |
|
Immediately | $ 79.61 | ||||
| 10B | W10761018 | Trim, Side (black (left)) (Replaces: W10746436) |
|
Immediately | $ 51.80 | ||||
| 10C | W10761014 | Trim, Side (black (right)) (Replaces: W10746435) |
|
Immediately | $ 68.96 | ||||
| 12A | WP8523177 | Trim, Lower (black) (Replaces: 8523177) |
|
$ 149.27 | |||||
| 17A | W11037027 | Standoff, Handle (black) |
|
- | |||||
| 1A | WPW10310922 | Trim, Top (black) (Replaces: W10310922) |
|
Immediately | $ 165.73 | ||||
| 3A | W11110499 | Handle, Door (stainless) (Replaces: W10875206) |
|
Immediately | $ 169.38 | ||||
| 8A | WPW10299226 | Hinge, Active (white Model) (Replaces: W10299226) |
|
Immediately | $ 83.84 |
