SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts

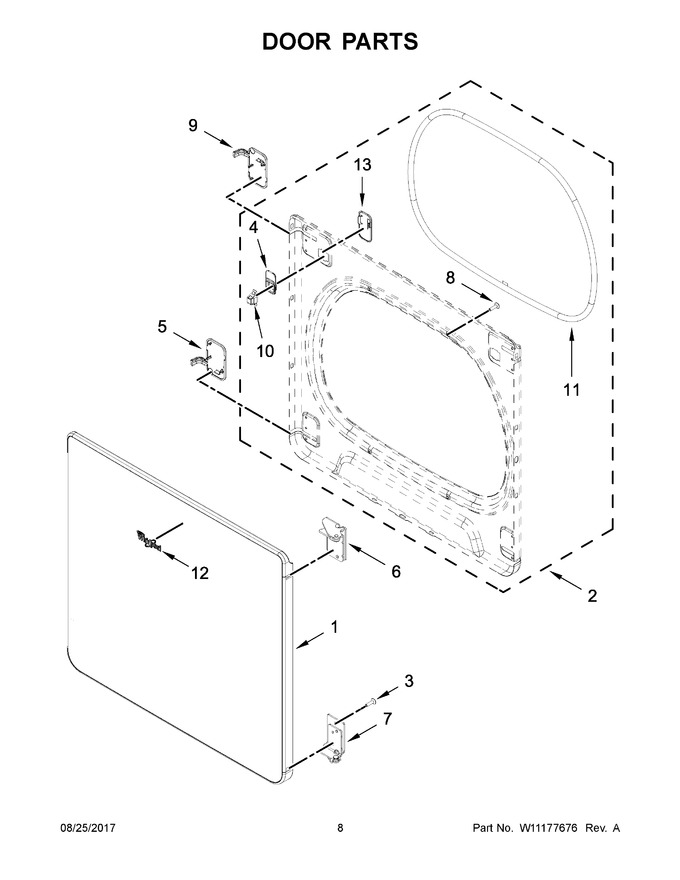

05 - Door Parts


06 - Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10614960		Door, Outer (chrome Shadow)			Immediately	$ 465.33
2	W11133036		Assembly, Inner Door (white)   (Replaces: W10915194)				$ 235.51
3	W10850046		Screw   (Replaces: 9742177)			Immediately	$ 6.80
4	W11103932		Bezel, Door Catch (white)   (Replaces: W10631401)				$ 25.46
5	W10631396		Hinge Cover, Bottom (white)		Appelez-nous	-
6	W10850024		Door, Hinge (upper)   (Replaces: W10783754)				$ 76.98
7	W10850044		Door, Hinge (lower)   (Replaces: W10783755)				$ 76.88
8	WP488627		Screw   (Replaces: 342055)				$ 7.30
9	W10631395		Hinge Cover, Top (white)		Appelez-nous	-
10	W11429587		Assembly, Door Catch   (Replaces: W10610880)			Immediately	$ 23.90
11	W10763835		Seal, Door			Immediately	$ 116.81
12	WPW10393264		Badge (grey)   (Replaces: W10393264)				$ 60.97
13	W10631410		Cover, Door Catch (white)		Appelez-nous	-
13A	W10669024		Cover, Door Catch (chrome Shadow)				$ 23.09
2A	W11162064		Assembly, Inner Door (chrome Shadow)   (Replaces: W10915195)				$ 274.92
4A	W10669023		Bezel, Door Catch (chrome Shadow)				$ 21.28
5A	W10631413		Hinge Cover, Bottom (chrome Shadow)		Appelez-nous	-
9A	W10631412		Hinge Cover, Top (chrome Shadow)				$ 25.76

    View Diagram in Separate Window       Print Part List
