SELECT A DIAGRAM

Diagram for 01 - Cover Sheet
01 - Cover Sheet

Diagram for 02 - Door And Panel Parts
02 - Door And Panel Parts

Diagram for 03 - Control Panel And Latch Parts
03 - Control Panel And Latch Parts

Diagram for 04 - Inner Door Parts
04 - Inner Door Parts

Diagram for 05 - Fill, Drain And Overfill Parts
05 - Fill, Drain And Overfill Parts

Diagram for 06 - Tub And Frame Parts
06 - Tub And Frame Parts

Diagram for 07 - Pump, Washarm And Motor Parts
07 - Pump, Washarm And Motor Parts

Diagram for 08 - Upper Wash And Rinse Parts
08 - Upper Wash And Rinse Parts

Diagram for 09 - Upper Rack And Track Parts
09 - Upper Rack And Track Parts

Diagram for 10 - Lower Rack Parts
10 - Lower Rack Parts

Diagram for 11 - Third Level Rack And Track Parts
11 - Third Level Rack And Track Parts

Diagram for 12 - Optional Parts (not Included)
12 - Optional Parts (not Included)


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10861745 Feed Tube Assembly (includes Items 2 & 3)   (Replaces: W10753067) In-Stock Immediately $ 161.46

2 WPW10327455 Sprayarm, Third Level   (Replaces: W10327455) In-Stock Immediately $ 64.13

3 WP3400918 Retainer   (Replaces: 3400918) In-Stock Immediately $ 29.47

4 W11162734 Manifold   (Replaces: W10900342) Special Order $ 310.97

5 WPW10448645 Sprayarm, Upper   (Replaces: W10448645) In-Stock Immediately $ 56.50

6 W10875047 Assembly, Bottle Wash Special Order $ 319.52


    View Diagram in Separate Window     Print Icon   Print Part List

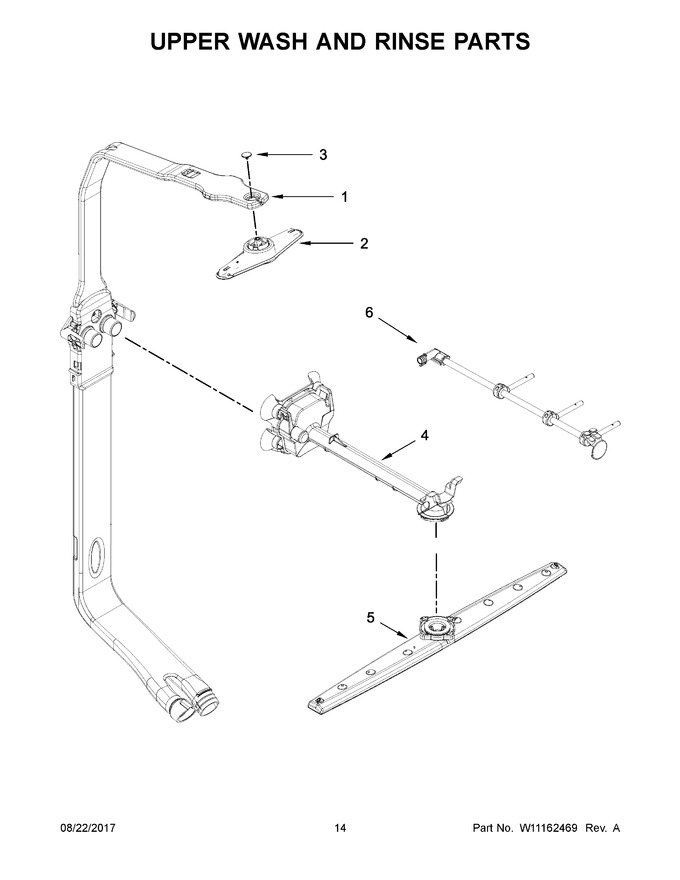

Diagram for KDTE304GPS0
