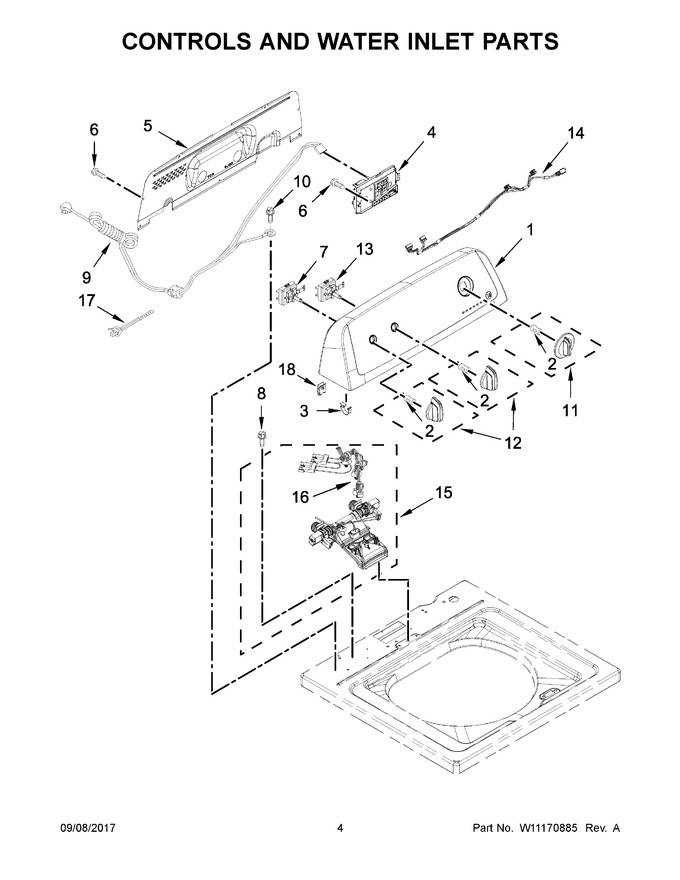

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11089544		Panel, Console   (Replaces: W11025637)		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
4	W11170317		Control Unit Assembly, Machine And Motor   (Replaces: W11101098)			Immediately	$ 486.03
5	W10409320		Panel, Console Rear Cover				$ 237.41
6	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
7	WPW10414398		Switch, Rotary Encoder (4 Position)   (Replaces: W10414398)				$ 179.60
8	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 6.80
9	W10850133		Cord, Power   (Replaces: W10711784)			Immediately	$ 121.53
10	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
11	WPW10711289		Assembly, Timer Knob (white)   (Replaces: W10711289)			Immediately	$ 7.50
12	WPW10453947		Assembly, Control Knob (white)   (Replaces: W10453947)				$ 49.28
13	W10859568		Switch, Rotary Encoder (5 Position)   (Replaces: W10414411)			Immediately	$ 169.49
14	W11256701		Harness, Upper   (Replaces: W10694679)				$ 166.57
15	W11210459		Inlet Assembly, Water   (Replaces: W10869799)			Immediately	$ 94.50
16	W10868094		Harness, Valve				$ 167.50
17	W10339680		Cable Tie		Appelez-nous	-
18	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32

    View Diagram in Separate Window       Print Part List
