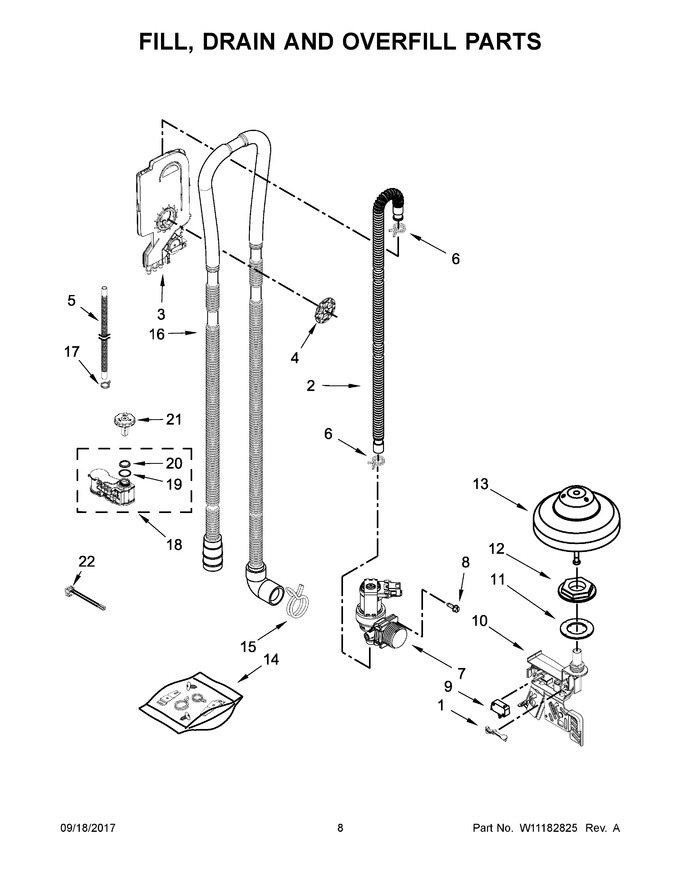

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10195037 | Lever, Overfill Switch (Replaces: W10195037) |
|
Immediately | $ 10.57 | ||||
| 2 | W10743461 | Hose, Inlet |
|
$ 92.78 | |||||
| 3 | WPW10458714 | Tank, Regen Dosage (also Order Item 4) (Replaces: W10458714) |
|
$ 92.34 | |||||
| 4 | W11387338 | Nut, Regen Dosage (Replaces: W10195786) |
|
$ 13.37 | |||||
| 5 | W10743462 | Hose, Softner |
|
- | |||||
| 6 | WP596669 | Clamp, Hose (Replaces: 371505) |
|
Immediately | $ 7.94 | ||||
| 7 | W11175767 | Fill Valve Assembly (Replaces: W10327247) |
|
$ 169.85 | |||||
| 8 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.43 | |||||
| 9 | WPW10195039 | Switch, Overfill Control (Replaces: W10734532) |
|
Immediately | $ 69.68 | ||||
| 10 | W10873429 | Housing, Overfill (also Order Item 11) (Replaces: W10647205) |
|
Immediately | $ 21.78 | ||||
| 11 | WP8531743 | Gasket, Flat (Replaces: 8531743) |
|
Immediately | $ 43.57 | ||||
| 12 | WPW10195038 | Nut, Standpipe (Replaces: W10195038) |
|
Immediately | $ 7.58 | ||||
| 13 | WPW10195036 | Float & Retainer Assembly (Replaces: W10195036) |
|
Immediately | $ 79.54 | ||||
| 14 | WPW10292170 | Miscellaneous Parts Bag (contains 2 Screws, 2 Clamps, & 2 Brackets) (Replaces: W10786174) |
|
$ 87.23 | |||||
| 15 | WP285655 | Clamp, Hose (Replaces: 370445) |
|
Immediately | $ 7.93 | ||||
| 16 | W10545279 | Drain Loop With Check Valve Assembly |
|
$ 123.35 | |||||
| 17 | WP596669 | Clamp, Hose (Replaces: 9724997) |
|
Immediately | $ 7.94 | ||||
| 18 | W10347358 | Tank, Water Softener |
|
- | |||||
| 19 | W10195056 | Gasket, Softener Tank |
|
$ 5.27 | |||||
| 20 | W10195058 | Nut, Softener Tank |
|
- | |||||
| 21 | W10610924 | Cap, Softner Tank |
|
$ 10.01 | |||||
| 22 | W10367058 | Harness-jumper Flow Meter |
|
- |
