SELECT A DIAGRAM

01 - Cover Sheet

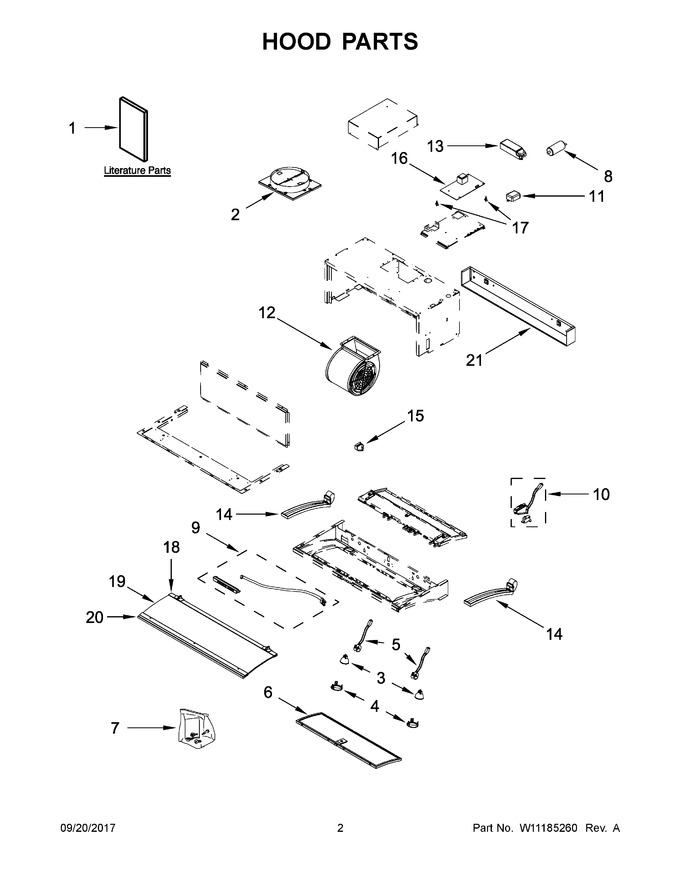

02 - Hood Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10342488		Use And Care Guide		Appelez-nous	-
2	W10706422		Damper Assembly   (Replaces: W10369162)				$ 298.05
3	WPW10252088		Lamp, Halogen   (Replaces: W10369197)			Immediately	$ 103.45
4	W10369165		Light Bezel				$ 21.25
5	W11185790		Socket, Light (with Wiring)			Immediately	$ 27.32
6	WPW10369163		Grease Filter   (Replaces: W10369163)				$ 210.09
7	W11185791		Hardware, Installation				$ 154.06
8	W10256657		Capacitor			Immediately	$ 84.93
9	W11186489		Display (with Wiring)   (Replaces: W11185788)				$ 245.86
10	W10382895		Micro Switch (with Wiring)				$ 74.18
11	W10369194		Noise Filter			Immediately	$ 203.55
12	W10382894		Fan Assembly				$ 306.12
13	W11186486		Transformer   (Replaces: W11185789)			Immediately	$ 206.24
14	W10369365		Guide Slides (pair)				$ 130.02
15	W11185782		Glides, Glass Support		Appelez-nous	-
16	W10369412		Control, Electronic				$ 313.70
17	8190833		Bracket, Mounting				$ 7.46
18	W10369367		Molding, Inside Glass (back) (30" Model Only)				$ 166.44
19	WPW10369366		Sliding Glass (30" Model Only)   (Replaces: W10369366)				$ 269.96
20	W10369357		Molding, Inside Glass (front) (30" Model Only)				$ 191.38
21	W10369364		Housing Control (30" Model Only)		Appelez-nous	-
18A	W10369385		Molding, Inside Glass (back) (36" Model Only)		Appelez-nous	-
19A	WPW10369389		Sliding Glass (36" Model Only)   (Replaces: W10369389)				$ 260.16
20A	W10369397		Molding, Inside Glass (front) (36" Model Only)				$ 135.96
21A	W10369398		Housing Control (36" Model Only)		Appelez-nous	-
NI	W10356922		Accessories, Charcoal Filter Replacements				$ 116.58
NI	W10356918		Accessories, Recirculation Kit				$ 148.63

    View Diagram in Separate Window       Print Part List
