01 - Cover Sheet

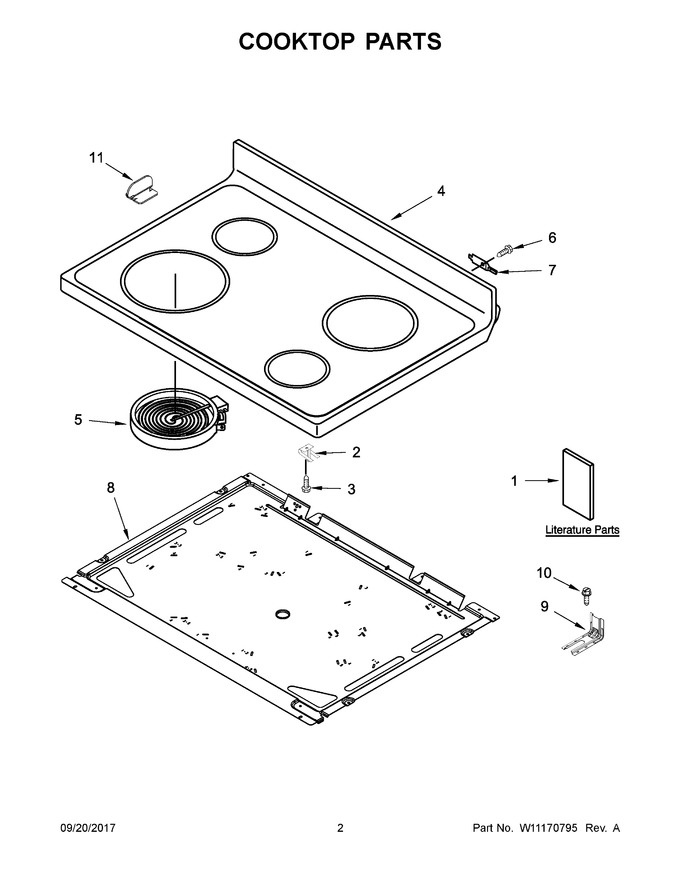

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Drawer Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10720131 | Installation Instructions |
|
- | |||||
| 2 | WPW10225448 | Spring, Element (Replaces: W10225448) |
|
Immediately | $ 9.36 | ||||
| 3 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 4 | W10248202 | Cooktop (white) (Replaces: W10202165) |
|
$ 543.38 | |||||
| 5 | WPW10242957 | Element, Surface (2000 Watt (left Front, Right Rear)) (Replaces: W10242957) |
|
$ 324.59 | |||||
| 6 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 7 | WP3195060 | Hinge, Cooktop (Replaces: 3195060) |
|
Immediately | $ 11.86 | ||||
| 8 | W11728329 | Pan, Radiant Element (Replaces: W10691223) |
|
Immediately | $ 129.14 | ||||
| 9 | W11839019 | Bracket, Anti-tip (Replaces: W10306542) |
|
Immediately | $ 25.69 | ||||
| 10 | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 27.65 | |||||
| 11 | W10607641 | Bracket, Cooktop (left) |
|
$ 30.17 | |||||
| 11A | W10607642 | Bracket, Cooktop (right) |
|
- | |||||
| 1A | W10545225 | Use And Care Guide |
|
- | |||||
| 1B | W10384447 | Tech Sheet (english) |
|
- | |||||
| 1C | W10384462 | Tech Sheet (french) |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 5A | WP8523045 | Element, Surface (1500/1700 Watt (left Rear, Right Front)) (Replaces: 8523045) |
|
$ 282.76 | |||||
| NI | W11244557 | Screw (Replaces: 3196173) |
|
$ 12.86 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10844297 | Harness, Wire (cooktop Left) |
|
- | |||||
| NI | W10844299 | Harness, Wire (cooktop Right) |
|
- | |||||
| NI | W10306365 | Harness, Main |
|
- | |||||
| NI | W11172424 | Harness, Sensor (Replaces: W10083650) |
|
$ 102.40 | |||||
| NI | W11226497 | Cord, Power (Replaces: W10624591) |
|
Immediately | $ 99.50 | ||||
| NI | 3184020 | Wire, Ground (Replaces: 8523279) |
|
$ 78.23 | |||||
| NI | 313660 | Clip, Ground Wire |
|
- | |||||
| NI | WP3196154 | Screw (Replaces: 3196154) |
|
$ 7.60 | |||||
| NI | WPW10144763 | Tie, Cable (Replaces: W10144763) |
|
$ 7.14 |
