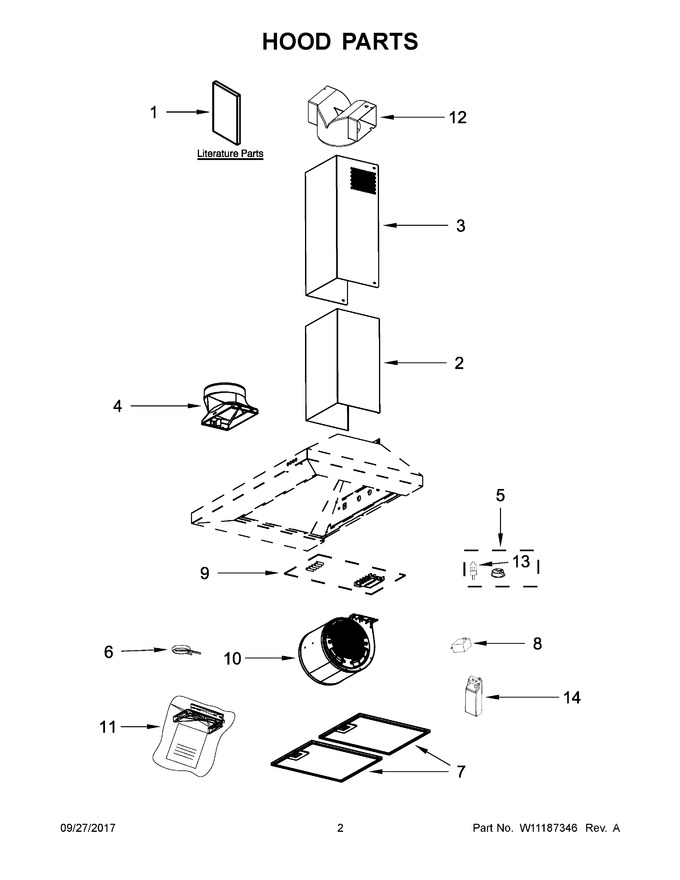

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10444175 | Use & Care Guide |
|
- | |||||
| 2 | W11417192 | Chimney, Lower (Replaces: W10350864) |
|
$ 338.23 | |||||
| 3 | W11417192 | Chimney, Upper (Replaces: W10350865) |
|
$ 338.23 | |||||
| 4 | W10847841 | Damper, Hood (Replaces: W10592040) |
|
$ 147.46 | |||||
| 5 | WP8186678 | Assembly, Light (Replaces: 8186678) |
|
$ 73.21 | |||||
| 6 | W10427011 | Filter, Noise |
|
- | |||||
| 7 | W10169961A | Filter, Grease (Replaces: W10870878) |
|
Immediately | $ 39.53 | ||||
| 8 | W11328673 | Capacitor (Replaces: W10735734) |
|
Immediately | $ 59.00 | ||||
| 9 | WPW10727063 | Switch, Push Button (Replaces: W10504432) |
|
$ 234.46 | |||||
| 10 | W11187730 | Assembly, Fan (Replaces: W11187168) |
|
- | |||||
| 11 | W10504433 | Hardware, Install |
|
$ 88.22 | |||||
| 12 | W10427014 | Duct, Air Diverter |
|
$ 99.74 | |||||
| 13 | WPW10298151 | Bulb, Halogen (Replaces: W10298151) |
|
Immediately | $ 27.66 | ||||
| 14 | W11186486 | Transformer (Replaces: W11185789) |
|
Immediately | $ 206.24 | ||||
| NI | W11430940 | Accessories, Recirculation Kit (for Non-vented Installations Only) (Replaces: W10349327) |
|
Immediately | $ 137.92 | ||||
| NI | W10412939 | Accessories, Kit, Charcoal Filter (for Non-vented Installations Only) |
|
Immediately | $ 70.33 | ||||
| NI | W10337357 | Accessories, Chimney Extension Kit |
|
$ 405.95 |
