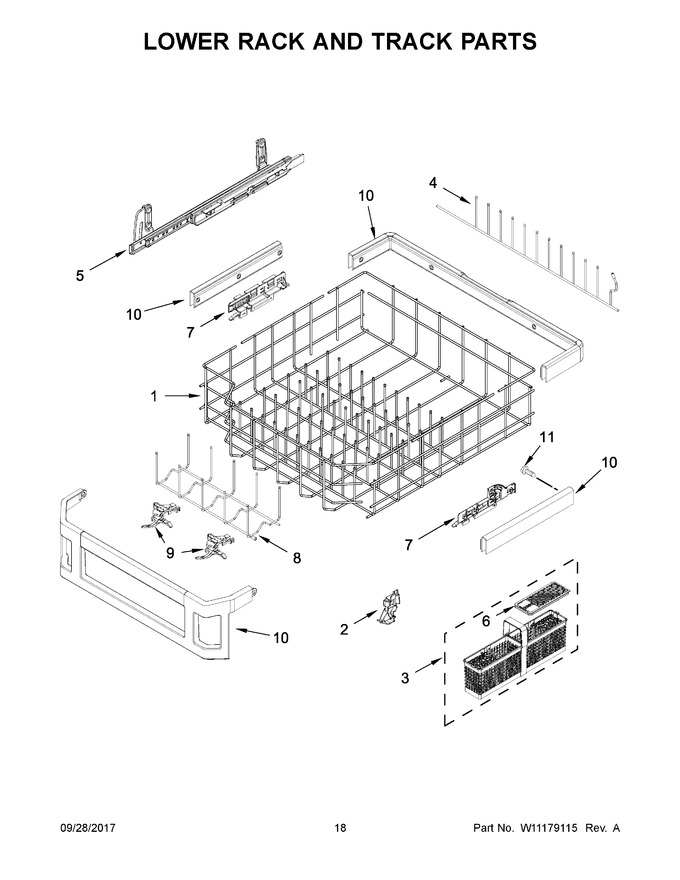

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10642737		Dishrack, Lower				$ 161.62
2	W11193827		Support, Front Ski (left Hand)   (Replaces: W10473813)				$ 21.92
3	W11767095		Basket Assembly, Silverware   (Replaces: W10473836)			Immediately	$ 66.50
4	W10713279		Tine Row, Fold Down				$ 62.34
5	W10822165		Track Assembly (left Hand)   (Replaces: W10781307)			Immediately	$ 167.04
6	WPW10473835		Lid, Silverware Basket   (Replaces: W10473835)				$ 25.29
7	WPW10473807		Support, Rear Carriage (left Hand)   (Replaces: W10473807)			Immediately	$ 32.31
8	W10713281		Tine Row, Sliding				$ 62.96
9	W11213333		Retainer, Sliding Tine Row   (Replaces: W10713283)				$ 26.37
10	W10759663		Facade Assembly (includes Outside And Inside) (front)		Appelez-nous	-
11	W10716172		Screw		Appelez-nous	-
10A	W10713285		Facade Assembly (includes Outside And Inside) (left Side)		Appelez-nous	-
10B	W10642725		Facade Assembly (includes Outside And Inside) (right Side)		Appelez-nous	-
10C	W10796656		Facade Assembly (includes Outside And Inside) (rear)   (Replaces: W10642731)				$ 115.83
2A	W11197023		Support, Front Ski (right Hand)   (Replaces: W10473817)				$ 30.58
5A	W10822166		Track Assembly (right Hand)   (Replaces: W10781311)			Immediately	$ 165.17
7A	WPW10473809		Support, Rear Carriage (right Hand)   (Replaces: W10473809)			Immediately	$ 31.73
