01 - Cabinet Parts

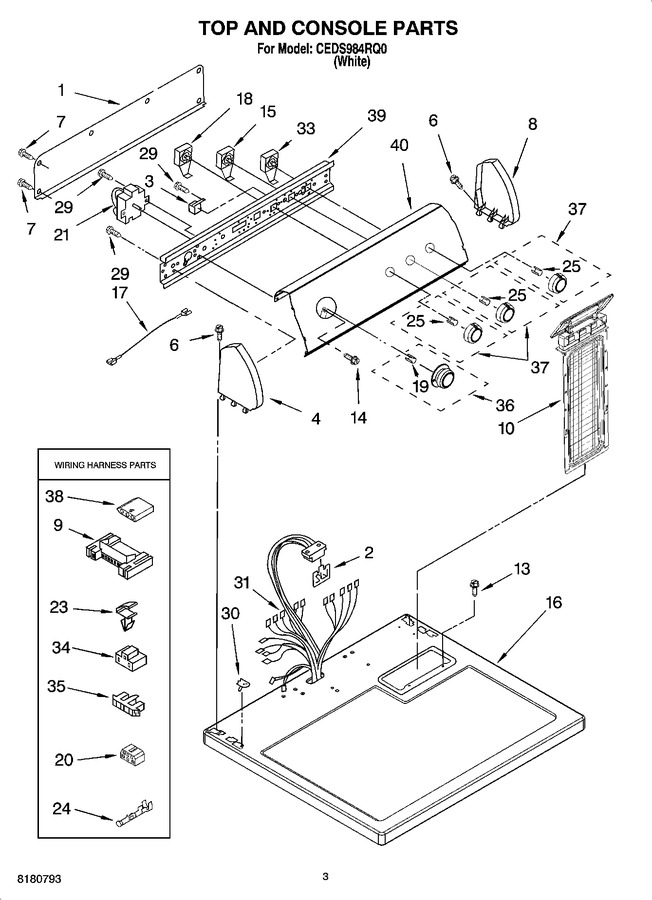

02 - Top And Console Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 121.78 | |||||
| 2 | WPW10476828 | Control, Electronic (Replaces: 8558178) |
|
Immediately | $ 296.94 | ||||
| 3 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 120.65 | |||||
| 4 | 8271365 | Cap, End (l.h.) |
|
- | |||||
| 6 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 8.36 | |||||
| 7 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 8 | 8271359 | Cap, End (r.h.) |
|
- | |||||
| 9 | 3395683 | Housing, Connector (motor) |
|
Immediately | $ 49.01 | ||||
| 10 | W11778253 | Screen, Lint (Replaces: 8558463) |
|
Immediately | $ 49.17 | ||||
| 13 | W11693756 | Screw, 8-15 X 5/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 12.49 | |||||
| 15 | 3405154 | Switch, Finish Guard |
|
$ 144.47 | |||||
| 16 | 8557930 | Top |
|
- | |||||
| 17 | 3401684 | Wire, Jumper (black) |
|
$ 34.57 | |||||
| 18 | 8530152 | Switch, Temperature |
|
$ 14.81 | |||||
| 19 | WP688805 | Spring Clip (Replaces: 688805) |
|
Immediately | $ 7.38 | ||||
| 20 | 3347243 | Connector 6-circuit |
|
- | |||||
| 21 | WP3406725 | Timer, 60 Hz. (Replaces: 3406725) |
|
$ 348.31 | |||||
| 23 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 7.36 | |||||
| 24 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 7.25 | |||||
| 25 | WP8536939 | Spring-clip (3) (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 29 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 30 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 6.98 | |||||
| 31 | 8299889 | Harness, Wiring |
|
- | |||||
| 33 | WP3398095 | Switch, Push-to-start (Replaces: 3398095) |
|
Immediately | $ 83.59 | ||||
| 34 | 3401144 | Connector, (pts Relay) |
|
$ 11.53 | |||||
| 35 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 36 | WP8557455 | Timer Knob Assembly (Replaces: 8538953) |
|
$ 53.65 | |||||
| 37 | WP8538957 | Knob, Control (3) (Replaces: 8538957) |
|
$ 52.68 | |||||
| 38 | 3936144 | Connector |
|
$ 19.10 | |||||
| 39 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 40 | 8577343 | Panel, Control |
|
- |
