SELECT A DIAGRAM
01 - Cabinet
02 - Cavity
03 - Control Compartment And Control Panel
04 - Main Front
05 - Miscellaeous Information
06 - Oven Door
SELECT A DIAGRAM
New Model Search:

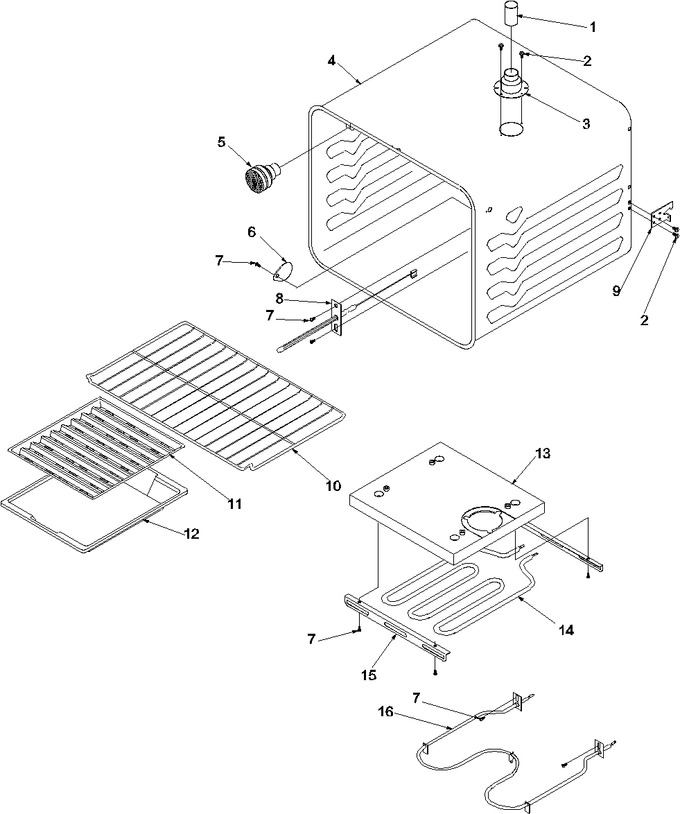

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y0042409 | Smoke Eliminator Vent Tube |
|
- | |||||
| 3 | Y0058526 | Smoke Eliminator |
|
- | |||||
| 4 | 314314CG | Weld, Oven Shell |
|
- | |||||
| 5 | WP74011278 | Assy, Oven Light (Replaces: Y0314842) |
|
$ 106.63 | |||||
| 6 | Y0040848 | Probe Recept. Cover Stainless |
|
- | |||||
| 8 | WPY0314907 | Sensor, Temperature (Replaces: Y0314907) |
|
$ 211.52 | |||||
| 9 | Y0041017 | Bracket, Oven Mounting-pyro |
|
- | |||||
| 10 | 314762J | Rack, Oven 19 3/16`` X 16 1/2`` |
|
- | |||||
| 11 | 4396923 | Grid, Broiler (cg) (Replaces: 304451CG) |
|
Immediately | $ 54.64 | ||||
| 12 | 4396923 | Pan, Broiler (cg) (Replaces: 314175CG) |
|
Immediately | $ 54.64 | ||||
| 13 | Y0306503 | Reflector, Broil Element |
|
- | |||||
| 14 | Y0042138 | Element, Broil (240v-2800w) |
|
- | |||||
| 15 | Y0040902 | Broil Element Support Pyro |
|
- | |||||
| 16 | WP77001092 | Element, Bake (240v-2800w) (Replaces: Y0042137) |
|
$ 137.48 | |||||
| NI | Y0042175 | Bulb, Light |
|
- |
