SELECT A DIAGRAM

01 - Cover Sheet

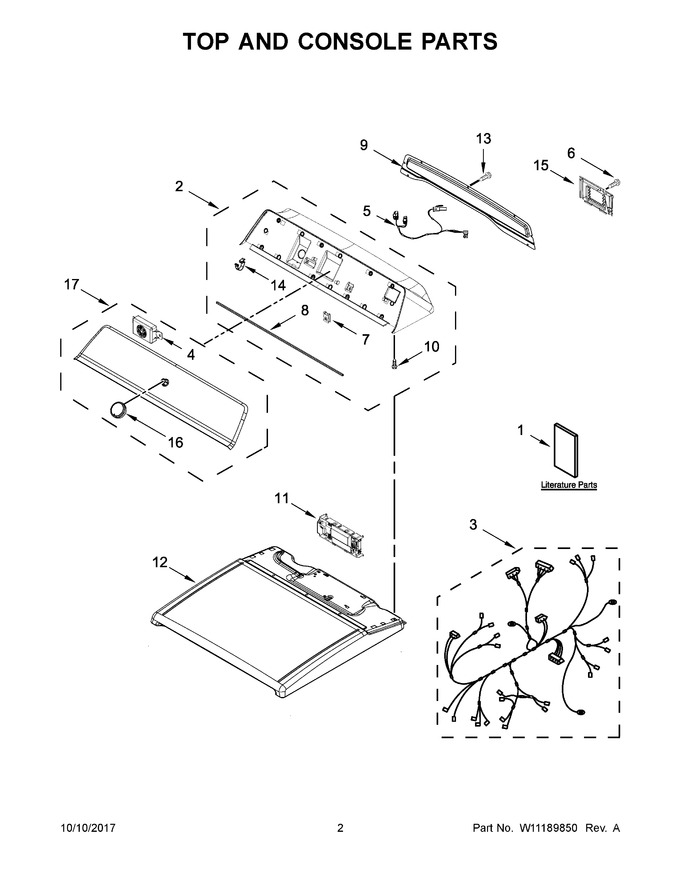

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725269		Installation Instructions		Appelez-nous	-
2	W11026442		Assembly, Fascia (white)   (Replaces: W10622102)			Immediately	$ 553.60
3	W10777444		Wiring Harness		Appelez-nous	-
4	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 72.84
5	W10849059		Harness, User Interface   (Replaces: W10788429)				$ 166.13
6	WPW10109200		Screw   (Replaces: 489470)			Immediately	$ 7.92
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 7.32
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10622402		Panel, Rear Console		Appelez-nous	-
10	W10853898		Screw   (Replaces: W10219342)				$ 7.36
11	W11158453		Control, Electronic   (Replaces: W11098435)				$ 500.06
12	W11227373		Top (white)   (Replaces: W10508981)				$ 230.05
13	WP9740849		Screw   (Replaces: 9740849)				$ 6.57
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 15.66
15	W10819767		Cover, Terminal Block   (Replaces: 8317339)		Appelez-nous	-
16	W10853910		Assembly, Control Knob (chrome)   (Replaces: W10727011)				$ 48.55
17	W11098473		Fascia		Appelez-nous	-
12A	W11051477		Top (chrome Shadow)   (Replaces: W10701018)				$ 322.97
1A	W11089272		Use And Care Guide		Appelez-nous	-
1B	W11089260		Tech Sheet		Appelez-nous	-
1C	W11089276		Quickstart Guide		Appelez-nous	-
2A	W10682013		Assembly, Fascia (chrome Shadow)				$ 342.93
