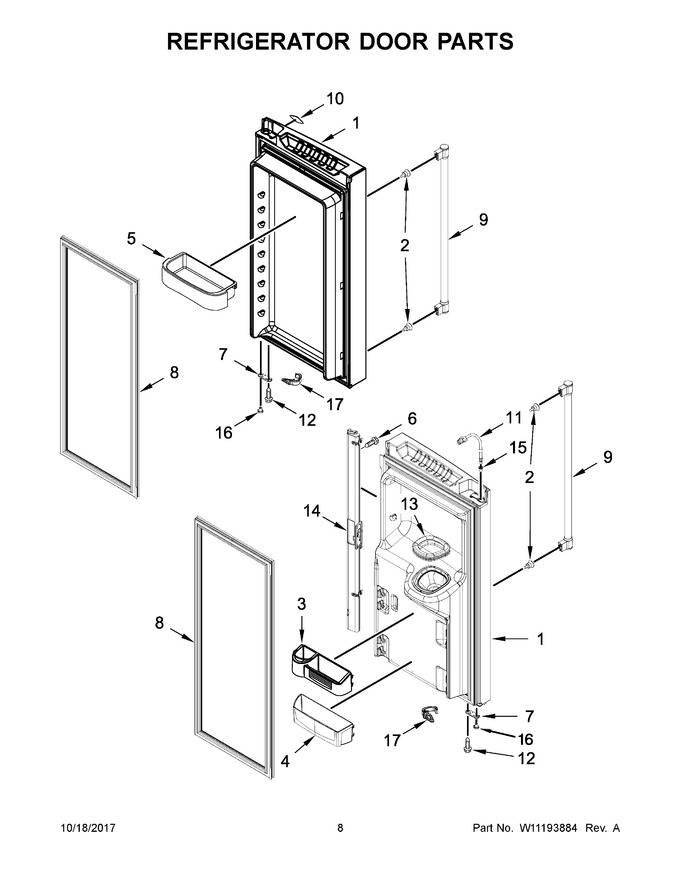

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10915642 | Door, Refrigerator Left Hand (stainless) (Replaces: W10890279) |
|
$ 1,062.62 | |||||
| 2 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 11.59 | ||||
| 3 | WPW10323808 | Bucket, Upper (Replaces: W10323808) |
|
Immediately | $ 73.35 | ||||
| 4 | WPW10212139 | Bucket, Small (Replaces: W10212139) |
|
Immediately | $ 76.35 | ||||
| 5 | WPW10224961 | Bucket, Gallon (Replaces: W10224961) |
|
Immediately | $ 85.57 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 7 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 13.91 | |||||
| 8 | W10830055 | Gasket, Door (grey) |
|
Immediately | $ 255.29 | ||||
| 9 | W10879677 | Handle, Door (stainless) (Replaces: W10838130) |
|
Immediately | $ 193.88 | ||||
| 10 | WPW10612926 | Badge (Replaces: W10612926) |
|
Immediately | $ 35.64 | ||||
| 11 | WPW10511930 | Waterline, Door (Replaces: W10511930) |
|
$ 109.75 | |||||
| 12 | WP98165 | Screw (Replaces: 12990521) |
|
$ 7.71 | |||||
| 13 | WPW10287601 | Seal, Ice Chute (Replaces: W10287601) |
|
Immediately | $ 29.48 | ||||
| 14 | WP12722815AP | Mullion, Door (grey) (Replaces: 12722815AP) |
|
$ 304.21 | |||||
| 15 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 16 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 55.31 | ||||
| 17 | W10918008 | Latch, Door Closer Left Hand (grey) (Replaces: W10833741) |
|
$ 15.88 | |||||
| 17A | W10918010 | Latch, Door Closer Right Hand (grey) (Replaces: W10833739) |
|
Immediately | $ 15.88 | ||||
| 1A | W10910854 | Door, Refrigerator Right Hand (stainless) (Replaces: W10889706) |
|
$ 1,021.37 |
