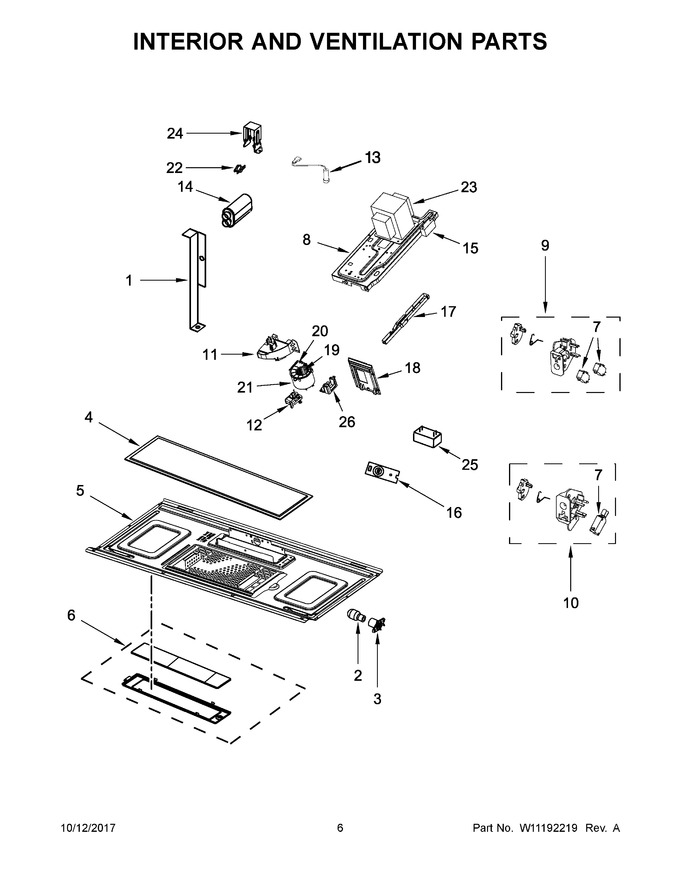

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10540715		Bracket, Top Cavity				$ 26.03
2	8206232A		Lamp, 40 Watt   (Replaces: 8206232)			Immediately	$ 6.94
3	W10210871		Holder, Lamp			Immediately	$ 6.81
4	W10208631A		Filter, Grease   (Replaces: W10208631)			Immediately	$ 29.33
5	W10571127		Plate, Bottom				$ 120.12
6	W10240330		Assembly, Lamp Glass And Holder				$ 6.80
7	N/P		Switches, Interlock (not Serviced, Order Interlock Assemblies)		Appelez-nous	-
8	W10631826		Chassis		Appelez-nous	-
9	W11192678		Assembly, Upper Interlock (includes Switches)   (Replaces: W11169313)			Immediately	$ 30.94
10	W11192679		Assembly, Lower Interlock (includes Switches)   (Replaces: W11169315)			Immediately	$ 21.94
11	W10631700		Air Guide, Magnetron				$ 42.35
12	W11230994		Motor, Cooling   (Replaces: W10536556)			Immediately	$ 181.02
13	W11256462		Diode, High Voltage   (Replaces: W10575765)			Immediately	$ 31.37
14	W10561770		Capacitor, High Voltage				$ 68.39
15	W11405831		Capacitor, Hood Motor   (Replaces: W10245191)				$ 39.92
16	W10536989		Thermistor, Pcba			Immediately	$ 34.81
17	W10540718		Bracket, Cavity				$ 29.35
18	W10533481		Deflector, Air				$ 29.02
19	W10533503		Wheel, Cooling Fan				$ 30.73
20	W10533502		Cover, Cooling Fan				$ 23.84
21	W10533501		Housing, Cooling Fan			Immediately	$ 28.58
22	W10598693		Thermostat				$ 58.73
23	W11371718		Transformer, High Voltage   (Replaces: W11087316)				$ 337.50
24	W10633730		Bracket, Capacitor		Appelez-nous	-
25	W10568805		Resistor, Cement				$ 26.14
26	W10533480		Holder, Ntc				$ 22.29
