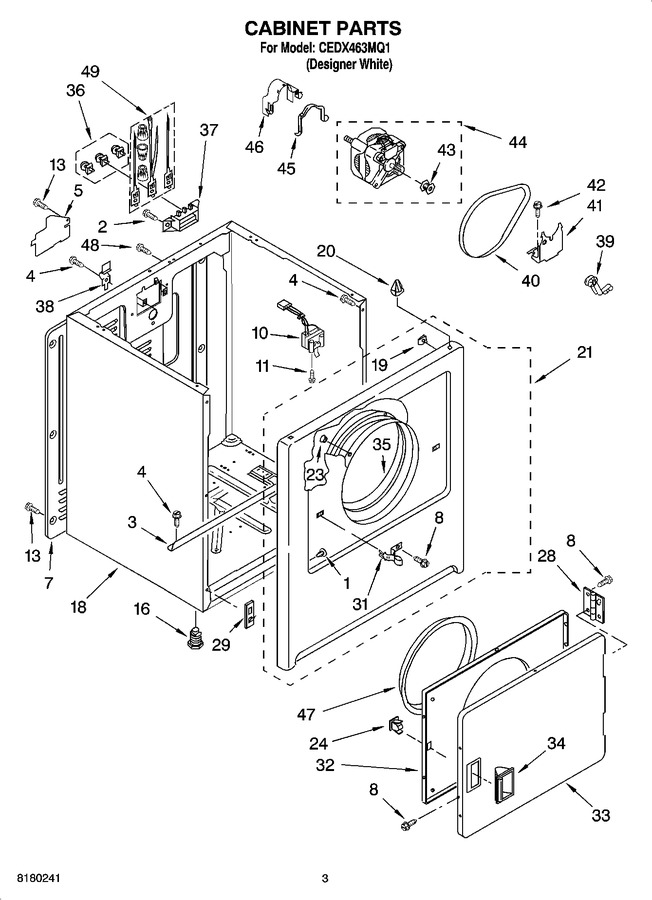

01 - Top And Console Parts
02 - Cabinet Parts
03 - Optional Parts (not Included) Bulkhead Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3404413 | Plug, Hinge Hole (4) (Replaces: 3404413) |
|
Immediately | $ 7.52 | ||||
| 2 | WP308685 | Screw, 10-16 X 1/2 (Replaces: 3393008) |
|
Immediately | $ 7.08 | ||||
| 3 | 8541400 | Bracket, Cabinet |
|
- | |||||
| 4 | WP681414 | Screw,10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 5 | W11539855 | Cover, Terminal Block (Replaces: 3396795) |
|
Immediately | $ 566.78 | ||||
| 7 | 3396807 | Panel, Rear |
|
- | |||||
| 8 | WP488627 | Screw, 8-18 X 1/2 (Replaces: 342055) |
|
$ 7.30 | |||||
| 10 | WP3406105 | Door Switch Assembly (Replaces: 3406104) |
|
Immediately | $ 33.21 | ||||
| 11 | WP3395530 | Screw, 6-20 X 7/8 (Replaces: 697773) |
|
$ 7.71 | |||||
| 13 | WP693995 | Screw, Hex Washer Head (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 16 | 49621 | Foot, Dryer (4) (Replaces: 3392100) |
|
Immediately | $ 7.70 | ||||
| 18 | 8533643 | Cabinet (includes Illus. 3) (Replaces: 8530603) |
|
$ 377.30 | |||||
| 19 | WP98234 | Clip, Ground (Replaces: 98234) |
|
Immediately | $ 10.76 | ||||
| 20 | WP18776 | Lock, Front Top (2) (Replaces: 690363) |
|
Immediately | $ 11.98 | ||||
| 21 | 3403571 | Front Panel Assembly |
|
- | |||||
| 23 | 279220 | Clip, Felt Pad (Replaces: 685203) |
|
$ 21.20 | |||||
| 24 | 279570 | Catch, Door (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 28 | WPW10362431 | Hinge And Pin Assembly (2) (Replaces: 3405514) |
|
Immediately | $ 7.45 | ||||
| 29 | W10854425 | Clip, Front Panel (2) (Replaces: 3394083) |
|
Immediately | $ 14.71 | ||||
| 31 | 279570 | Strike, Door (Replaces: 696144) |
|
Immediately | $ 8.00 | ||||
| 32 | 3403371 | Door, Rear |
|
$ 77.01 | |||||
| 33 | WP3403361 | Door, Front (Replaces: 3403361) |
|
$ 171.48 | |||||
| 34 | WP3405184 | Handle, Door (Replaces: 3405184) |
|
$ 71.83 | |||||
| 35 | 279264 | Seal & Bearing Assembly (Replaces: 8066124) |
|
Immediately | $ 76.91 | ||||
| 36 | 279393 | Terminal Block Kit (for Terminal Block) |
|
Immediately | $ 50.09 | ||||
| 37 | WP3397659 | Block, Terminal (Replaces: 3397659) |
|
$ 21.75 | |||||
| 38 | WP8066217 | Hinge, Top (2) (Replaces: 238088) |
|
$ 7.39 | |||||
| 39 | WP691366 | Idler & Pulley Assembly (Replaces: 691366) |
|
Immediately | $ 20.22 | ||||
| 40 | 341241 | Belt, Drive (Replaces: 8066065) |
|
Immediately | $ 16.34 | ||||
| 41 | WP348780 | Base, Motor (Replaces: 348780) |
|
Immediately | $ 114.89 | ||||
| 42 | 3400500 | Bolt, 5/16-18 X 3/4 |
|
Immediately | $ 12.64 | ||||
| 43 | WP8066184 | Pulley, 60 Hz. (Replaces: 3394341) |
|
Immediately | $ 45.92 | ||||
| 44 | 279827 | Motor Assembly 60 Hz. (Replaces: 8538262) |
|
Immediately | $ 195.48 | ||||
| 45 | WP660658 | Clamp, Motor (Replaces: 660658) |
|
$ 7.40 | |||||
| 46 | WP3404162 | Clamp, Motor (w/shield) (Replaces: 3404162) |
|
Immediately | $ 7.39 | ||||
| 47 | W10861521 | Seal, Door (Replaces: 3405245) |
|
Immediately | $ 61.07 | ||||
| 48 | W10850756 | Screw, 10-32 X 5/8 (external Ground) (Replaces: 697776) |
|
$ 7.38 | |||||
| 49 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 49 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 11.07 | ||||
| 49 | WP689790 | Dry Rack (Replaces: 689790) |
|
$ 54.20 | |||||
| 49 | 350930 | Paint, Pressurized Spray (12 Oz.) White |
|
Immediately | $ 36.11 | ||||
| 49 | 350938 | Paint, Pressurized Spray (12 Oz.) (primer,grey) |
|
- | |||||
| 49 | 279318 | Terminal, Tinned & Brass (3) (includes Illus. 36) |
|
Immediately | $ 95.44 | ||||
| 49 | N/A | Accessory Parts |
|
- | |||||
| 49 | 4392065 | Kit, Dryer Repair (Replaces: 279948) |
|
Immediately | $ 60.01 | ||||
| 49 | W11224254 | Kit, Dryer Vent Testing (Replaces: 8522199) |
|
Immediately | $ 11.11 |
