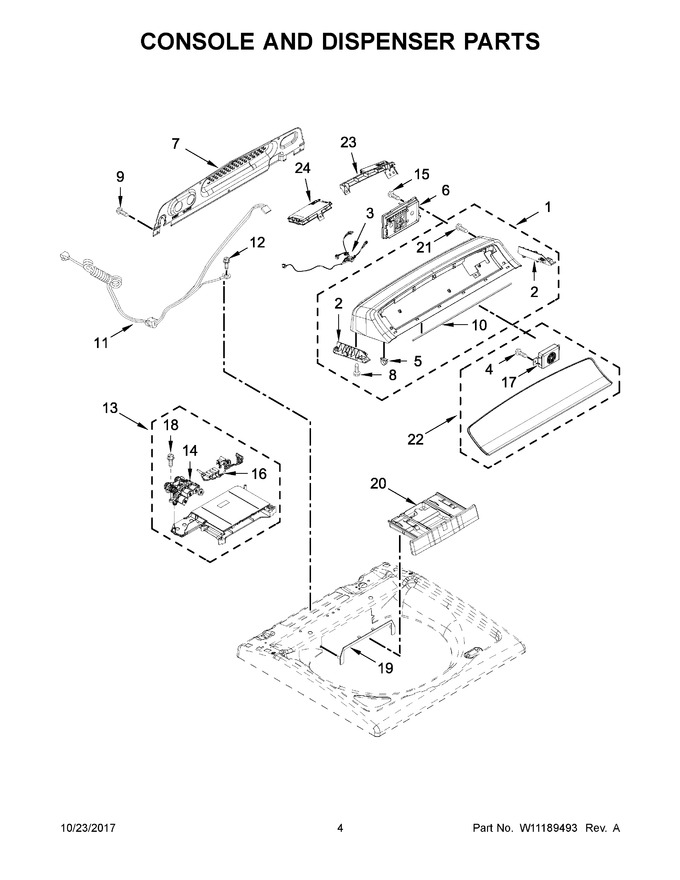

01 - Cover Sheet


02 - Top And Cabinet Parts


03 - Console And Dispenser Parts


04 - Motor, Basket And Tub Parts


05 - Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11026440		Console (chrome Shadow)   (Replaces: W10683071)				$ 594.03
2	W10631630		Console Mount (left)				$ 138.27
3	W10721101		Harness, Ui		Appelez-nous	-
4	W10728156		Screw		Appelez-nous	-
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
6	W10721110		Control Unit Assembly, Machine And Motor		Appelez-nous	-
7	W10611544		Panel, Console Rear Cover				$ 307.11
8	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 7.36
9	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
10	W10726624		Seal, Console				$ 29.03
11	W10721102		Cord, Power		Appelez-nous	-
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
13	W11173599		Assembly, Housing   (Replaces: W11096284)				$ 343.59
14	W11165546		Valve, Water Inlet   (Replaces: W11096267)			Immediately	$ 104.41
15	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
16	W11193817		Harness, Valve   (Replaces: W10849297)			Immediately	$ 167.72
17	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 72.84
18	WPW10109200		Screw   (Replaces: 97787)			Immediately	$ 7.92
19	W10601876		Assembly, Dispenser Bezel (chrome Shadow)   (Replaces: W10601860)				$ 27.93
20	W11129928		Assembly, Dispenser Drawer (chrome Shadow)   (Replaces: W10795358)				$ 98.85
21	W11311945		Screw   (Replaces: 12990204)				$ 13.25
22	W10722864		Assembly, Console Fascia		Appelez-nous	-
23	W10833064		Assembly, Wifi Module   (Replaces: W10722860)		Appelez-nous	-
24	WPW10721092		Assembly, Power Meter   (Replaces: W10905616)				$ 263.16
2A	W10631629		Console Mount (right)		Appelez-nous	-
