01 - Cover Sheet
02 - Control Panel Parts
03 - Oven Parts

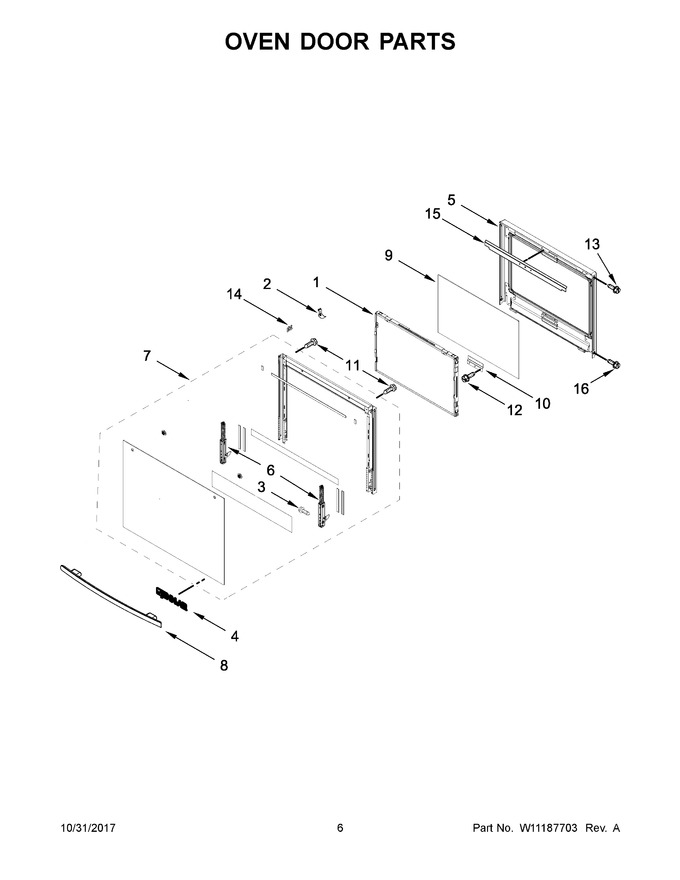

04 - Oven Door Parts
05 - Internal Oven Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10347597 | Assembly, Window Pack (Replaces: W10347597) |
|
$ 264.66 | |||||
| 2 | W10812024 | Spring, Door Glass Fixation (Replaces: W10284285) |
|
$ 149.18 | |||||
| 3 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 7.36 | ||||
| 4 | WPW10214168 | Badge (black) (Replaces: W10190724) |
|
$ 77.36 | |||||
| 5 | WPW10320793 | Assembly, Liner (Replaces: W10320793) |
|
$ 303.61 | |||||
| 6 | W10639070 | Hinge, Door |
|
$ 68.31 | |||||
| 7 | W10647057 | Assembly, Door (black) |
|
$ 415.26 | |||||
| 8 | W10687923 | Assembly, Handle (black) |
|
- | |||||
| 9 | W10829001 | Glass, Inner (Replaces: W10678525) |
|
$ 187.70 | |||||
| 10 | W10853628 | Bracket, Glass (Replaces: W10284297) |
|
$ 147.47 | |||||
| 11 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 7.44 | ||||
| 12 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 13 | W11690596 | Screw With Washer (Replaces: W10284411) |
|
$ 20.98 | |||||
| 14 | W11025615 | Clip, Spring Metal (Replaces: W10653954) |
|
Immediately | $ 158.53 | ||||
| 15 | W10669415 | Shield, Door Liner |
|
$ 62.60 | |||||
| 16 | W10828565 | Screw (black) (Replaces: 7101P635-60) |
|
$ 7.07 |
