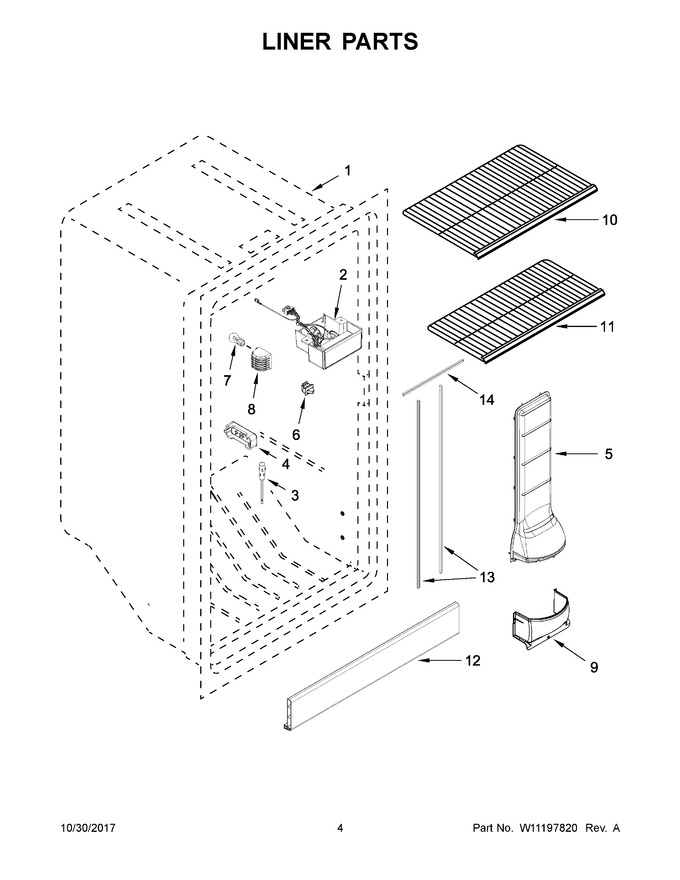

01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11496887 | Assembly, Control (Replaces: W11130843) |
|
$ 215.26 | |||||
| 3 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 106.62 | ||||
| 4 | W10608692 | Cover, Thermistor |
|
$ 28.11 | |||||
| 5 | W10574583 | Tower, Air |
|
$ 121.58 | |||||
| 6 | W10755325 | Switch, Light |
|
Immediately | $ 37.05 | ||||
| 7 | W11216993 | Lamp, Led (Replaces: W10820003) |
|
Immediately | $ 47.21 | ||||
| 8 | W10569269 | Lens, Control Box |
|
$ 77.84 | |||||
| 9 | W10574581 | Cover, Evaporator Fan |
|
- | |||||
| 10 | W10860909 | Shelf, Deep Wire (Replaces: W10569282) |
|
Immediately | $ 231.32 | ||||
| 11 | W11679651 | Shelf, Shallow Wire (Replaces: W10569283) |
|
$ 120.91 | |||||
| 12 | W10581590 | Trim, Door |
|
$ 97.81 | |||||
| 13 | WPW10574368 | Gasket, Air Tower (vertical) (Replaces: W10574368) |
|
$ 7.88 | |||||
| 14 | WPW10574368 | Gasket, Air Tower (horizontal) (Replaces: W10574564) |
|
$ 7.88 |
