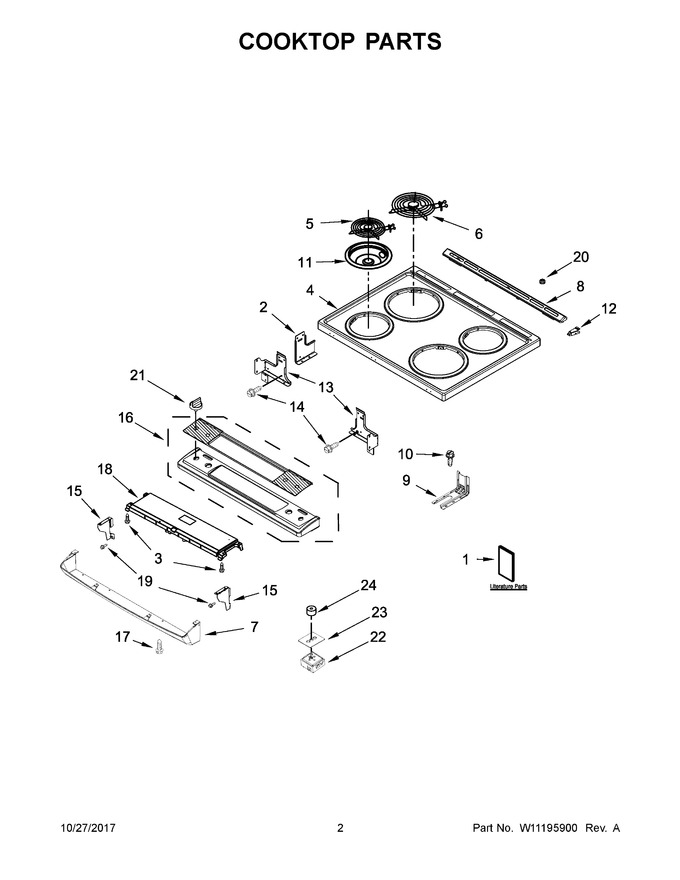

02 - Cooktop Parts


03 - Chassis Parts


04 - Door Parts


05 - Drawer Parts


06 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10842014		Instructions, Installation		Appelez-nous	-
2	W10814305		Bracket, Console (center)		Appelez-nous	-
3	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 13.28
4	W11487482		Cooktop (white)   (Replaces: W10536268)		Appelez-nous	-
5	W11168414		Element, Surface (6") (left Front And Right Rear)   (Replaces: W10259870)			Immediately	$ 139.04
6	W11161939		Element, Surface (8") (right Front And Left Rear)   (Replaces: W10259867)			Immediately	$ 151.77
7	W10894127		Console, Lower Panel (white)   (Replaces: W10816942)			Immediately	$ 482.27
8	W10636527		Vent, Trim Top (white)				$ 226.20
9	W11502257		Bracket, Anti-tip   (Replaces: W10606241)			Immediately	$ 20.73
10	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
11	WPW10196405		Bowl, Drip (8")   (Replaces: W10196405)			Immediately	$ 15.56
12	W10162253		Brace, Corner (left)				$ 66.72
13	W10814304		Support, Cooktop (right)		Appelez-nous	-
14	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
15	W10547960		Bracket, Console (left)				$ 20.90
16	W11082271		Console (white)   (Replaces: W10825291)		Appelez-nous	-
17	W10516115		Screw				$ 13.07
18	W11082278		Electronic, Control (lcx) (white)   (Replaces: W10806848)				$ 469.78
19	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
20	W11690600		Bumper   (Replaces: W10854253)			Immediately	$ 13.42
21	W10844797		Knob (white)			Immediately	$ 71.06
22	W10911303		Switch, Infinite (left Front And Right Rear)   (Replaces: W10578768)			Immediately	$ 103.74
23	WP71002569		Gasket, Infinite Switch   (Replaces: 7201P077-60)			Immediately	$ 9.51
24	W10702912		Gasket, Switch Stem				$ 26.84
11A	WPW10196406		Bowl, Drip (6")   (Replaces: W10196406)			Immediately	$ 12.05
12A	W10162252		Brace, Corner (right)				$ 70.73
13A	W10814303		Support, Cooktop (left)		Appelez-nous	-
15A	W10547961		Bracket, Console (right)				$ 20.90
16A	W11082273		Console (stainless)   (Replaces: W10825321)		Appelez-nous	-
18A	W11082279		Electronic, Control (lcx) (black)   (Replaces: W10806855)				$ 496.87
1A	W10887090		Use And Care Guide		Appelez-nous	-
1B	W10842032		Sheet, Tech		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
1E	W10850073		Wiring Diagram		Appelez-nous	-
21A	W11553330		Knob (stainless)   (Replaces: W10844799)			Immediately	$ 17.87
22A	W11162115		Switch, Infinite (right Front And Left Rear)   (Replaces: W10600015)			Immediately	$ 99.09
4A	W10795408		Cooktop (black)   (Replaces: W10536327)		Appelez-nous	-
7A	W10894124		Console, Lower Panel (black)   (Replaces: W10816943)				$ 504.32
8A	W11240519		Vent, Trim Top (black)   (Replaces: W10636528)				$ 141.47
NI	W10841090		Clamp, Wire   (Replaces: 7111P017-60)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10876368		Harness, Main		Appelez-nous	-
NI	W11190435		Harness, Cooktop   (Replaces: W10800450)				$ 198.86
NI	W10800451		Harness, Console		Appelez-nous	-
NI	W10664316		Clip, Harness				$ 18.87
