SELECT A DIAGRAM

01 - Cover Sheet


02 - Door Panel Parts


03 - Control Panel And Latch Parts


04 - Inner Door Parts


05 - Fill, Drain And Overfill Parts


06 - Tub, Tank And Frame Parts


07 - Pump, Washarm And Motor Parts


08 - Upper Wash And Rinse Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Optional Parts (not Included)

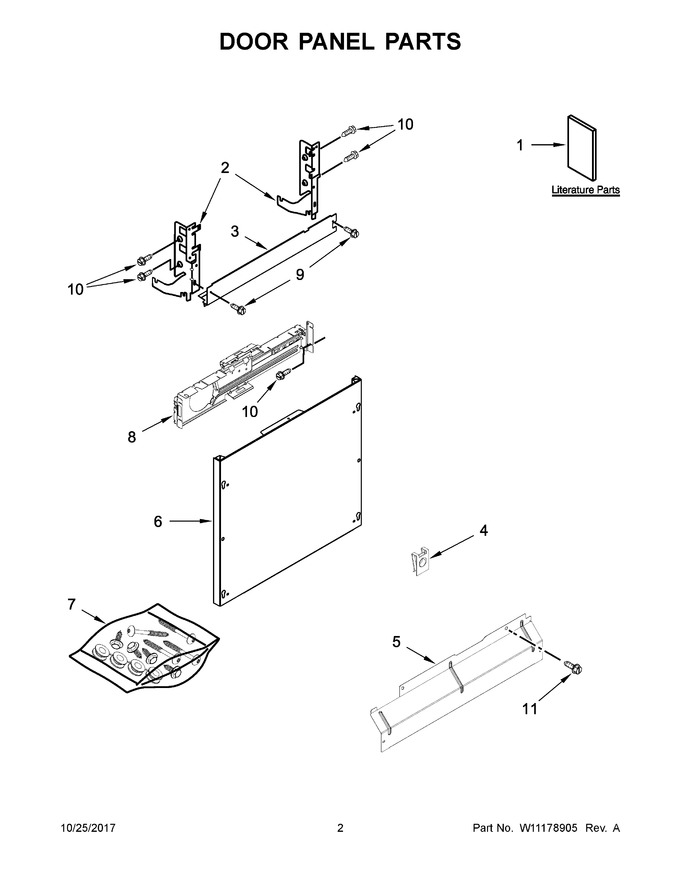

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10885892		Instructions, Installation (custom Panel)		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 142.39
3	W10850371		Barrier, Vapor   (Replaces: W10844384)			Immediately	$ 32.88
4	W10910629		U-nut   (Replaces: W10853886)				$ 8.64
5	W11763736		Access Panel (black)   (Replaces: W10852733)			Immediately	$ 42.25
6	W11113792		Panel Ready (front)   (Replaces: W10738109)			Immediately	$ 373.42
7	WPW10637074		Hardware, Custom Panel   (Replaces: W10637074)			Immediately	$ 75.05
8	W11116870		Bracket, Control   (Replaces: W10641745)				$ 89.95
9	WP489069		Screw   (Replaces: 304392)			Immediately	$ 8.40
10	WP3400071		Screw   (Replaces: 3400071)				$ 8.26
11	WP302868		Screw (black)   (Replaces: 302868)			Immediately	$ 8.18
1A	W10806906		Installation Instructions		Appelez-nous	-
1B	W10921037		Energy Guide		Appelez-nous	-
1C	W10889566		Use & Care Guide		Appelez-nous	-
1D	W10738101		Template, 6" Custom Panel		Appelez-nous	-
1E	W10617419		Tech Sheet, English		Appelez-nous	-
1F	W10617420		Tech Sheet, French		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 142.24
