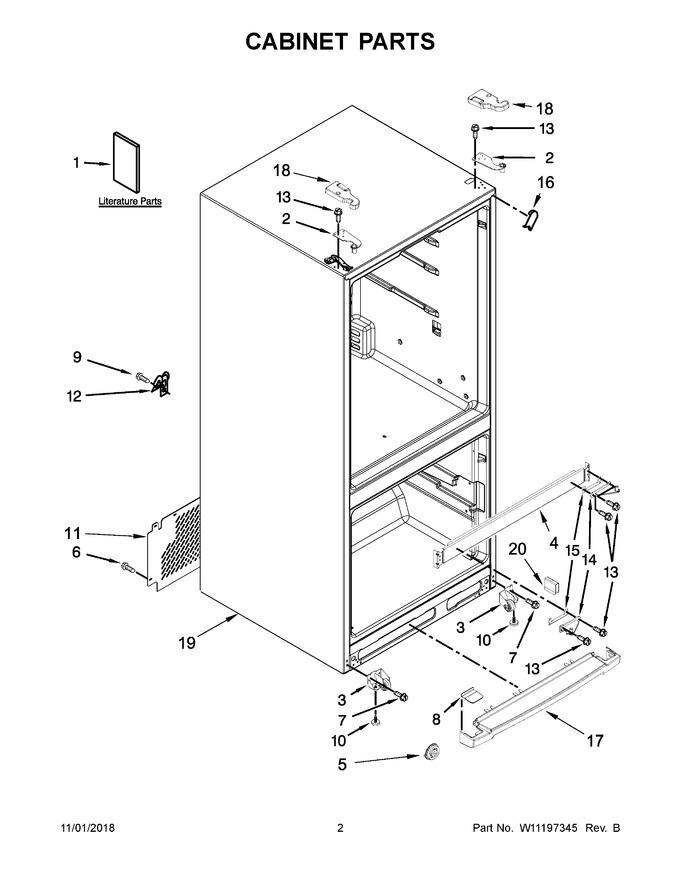

02 - Cabinet Parts
03 - Liner Parts
04 - Refrigerator Door Parts
05 - Freezer Door Parts
06 - Unit Parts
07 - Shelf Parts
08 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10641015 | Tech Sheet |
|
- | |||||
| 2 | W10546298 | Hinge, Top (left Hand) |
|
$ 63.14 | |||||
| 3 | WPW10359256 | Roller, Front (left Hand) (Replaces: W10359256) |
|
Immediately | $ 46.65 | ||||
| 4 | N/P | Rail, Center (not Serviced) |
|
- | |||||
| 5 | W10331226 | Drum, Toe Grille |
|
$ 42.68 | |||||
| 6 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.45 | ||||
| 7 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 8 | WPW10339257 | Cover, Toe Grille (white) (Replaces: W10339257) |
|
$ 76.88 | |||||
| 9 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 10 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.42 | ||||
| 11 | W10636716 | Cover, Unit |
|
$ 94.74 | |||||
| 12 | 549193 | Clamp, Power Cord |
|
$ 12.65 | |||||
| 13 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 14 | W10770878 | Hinge, Center (left Hand) |
|
Immediately | $ 74.07 | ||||
| 15 | WPW10450363 | Shim, Center Hinge (Replaces: W10450363) |
|
Immediately | $ 22.81 | ||||
| 16 | W11219639 | Corner Filler (white) (Replaces: W11189128) |
|
$ 10.69 | |||||
| 17 | WPW10300127 | Grille (white) (Replaces: W10300127) |
|
$ 145.34 | |||||
| 18 | W10465765 | Cover, Hinge (left Hand (white)) |
|
$ 18.51 | |||||
| 19 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 20 | WP2174706 | Clip, Roller (Replaces: 2174706) |
|
$ 10.38 | |||||
| 14A | W11417064 | Hinge, Center (right Hand) (Replaces: W10770877) |
|
Immediately | $ 54.66 | ||||
| 16A | W11219641 | Corner Filler (black) (Replaces: W11189127) |
|
$ 10.69 | |||||
| 16B | W11219642 | Corner Filler (grey) (Replaces: W11189126) |
|
Immediately | $ 11.57 | ||||
| 17A | WPW10353933 | Grille (black) (Replaces: W10353933) |
|
$ 146.52 | |||||
| 17B | WPW10353935 | Grille (grey) (Replaces: W10353935) |
|
Immediately | $ 146.81 | ||||
| 18A | W10465764 | Cover, Hinge (right Hand (white)) |
|
$ 19.36 | |||||
| 18B | W10465771 | Cover, Hinge (left Hand (black)) |
|
$ 17.78 | |||||
| 18C | W10465770 | Cover, Hinge (right Hand (black)) |
|
$ 20.49 | |||||
| 18D | W10465768 | Cover, Hinge (left Hand (grey)) |
|
$ 18.48 | |||||
| 18E | W10465767 | Cover, Hinge (right Hand (grey)) |
|
Immediately | $ 19.31 | ||||
| 1A | W10460646 | Use & Care Guide |
|
- | |||||
| 1B | W11112393 | Energy Guide |
|
- | |||||
| 2A | W11573371 | Hinge, Top (right Hand) (Replaces: W10546299) |
|
Immediately | $ 22.38 | ||||
| 3A | WPW10359255 | Roller, Front (right Hand) (Replaces: W10359255) |
|
Immediately | $ 90.58 | ||||
| 8A | W10353930 | Cover, Toe Grille (black) |
|
$ 76.81 | |||||
| 8B | WPW10353932 | Cover, Toe Grille (grey) (Replaces: W10353932) |
|
$ 76.95 |
