Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10195037 Lever, Overfill Switch   (Replaces: W10195037) In-Stock Immediately $ 10.57

2 W10878507 Hose   (Replaces: W10769066) In-Stock Immediately $ 73.43

3 W11676544 Inlet, Water (also Order Item 4)   (Replaces: W10584470) Special Order $ 24.44

4 WP8531323 Gasket   (Replaces: 8531323) In-Stock Immediately $ 36.96

5 WPW10213825 Nut, Water Inlet (also Order Item 4)   (Replaces: W10213825) Special Order $ 7.55

6 WP596669 Clamp, Hose   (Replaces: 371505) In-Stock Immediately $ 7.94

7 WPW10327249 Fill Valve Assembly   (Replaces: W10327249) In-Stock Immediately $ 73.10

8 WP3390631 Screw   (Replaces: 3390631) Special Order $ 7.43

9 WPW10195039 Switch, Overfill Control   (Replaces: W10734532) In-Stock Immediately $ 69.68

10 W10873429 Housing, Overfill (also Order Item 11)   (Replaces: W10647205) In-Stock Immediately $ 21.78

11 WP8531743 Gasket, Flat   (Replaces: 8531743) In-Stock Immediately $ 43.57

12 WPW10195038 Nut, Standpipe   (Replaces: W10195038) In-Stock Immediately $ 7.58

13 WPW10195036 Float & Retainer Assembly   (Replaces: W10195036) In-Stock Immediately $ 79.54

14 WPW10292170 Miscellaneous Parts Bag (contains 2 Screws, 2 Clamps, & 2 Brackets)   (Replaces: W10786174) Special Order $ 87.23

15 WP285655 Clamp, Hose   (Replaces: 370445) In-Stock Immediately $ 7.93

16 WPW10545278 Drain Loop With Check Valve Assembly   (Replaces: W10545278) In-Stock Immediately $ 71.34

17 W10772907 Vent Hose Special Order $ 82.62

18 W10871832 Outlet, Air Assembly (also Order Item 19)   (Replaces: W10851715) Special Order $ 121.07

19 W10653310 Seal, Rubber Special Order $ 37.03

20 W10871832 Nut, Air Assembly (also Order Item 19)   (Replaces: W10851721) Special Order $ 121.07

21 W11228135 Blower Assembly   (Replaces: W10673168) Special Order $ 122.54

22 W10653323 Nozzle, Airduct Special Order $ 80.03

23 W11288079 Tube, Exhaust   (Replaces: W10770367) Special Order $ 78.14

24 W10653320 Clip, Retainer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

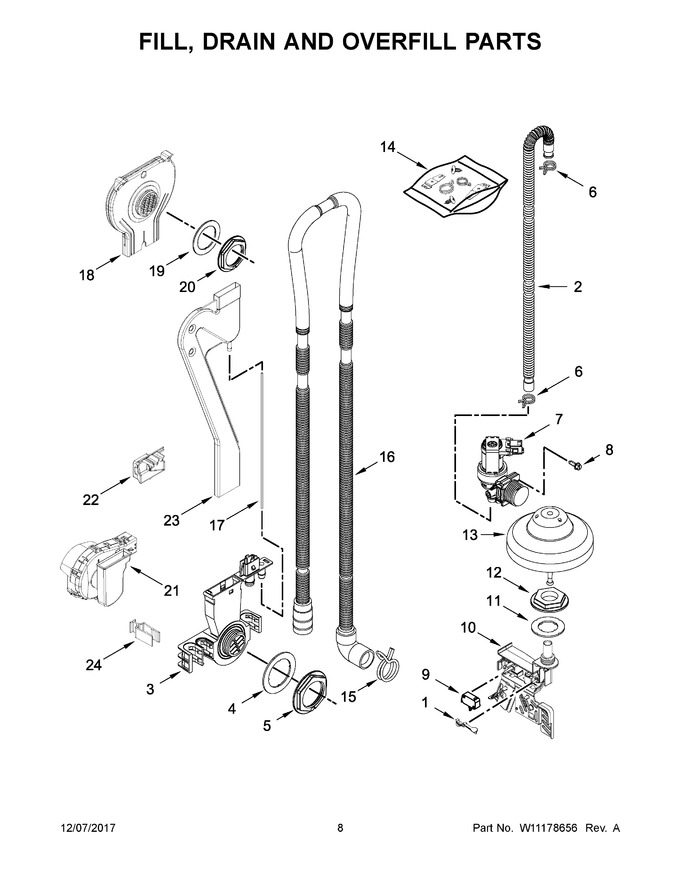

Diagram for JDTSS244GS0
