SELECT A DIAGRAM
New Model Search:

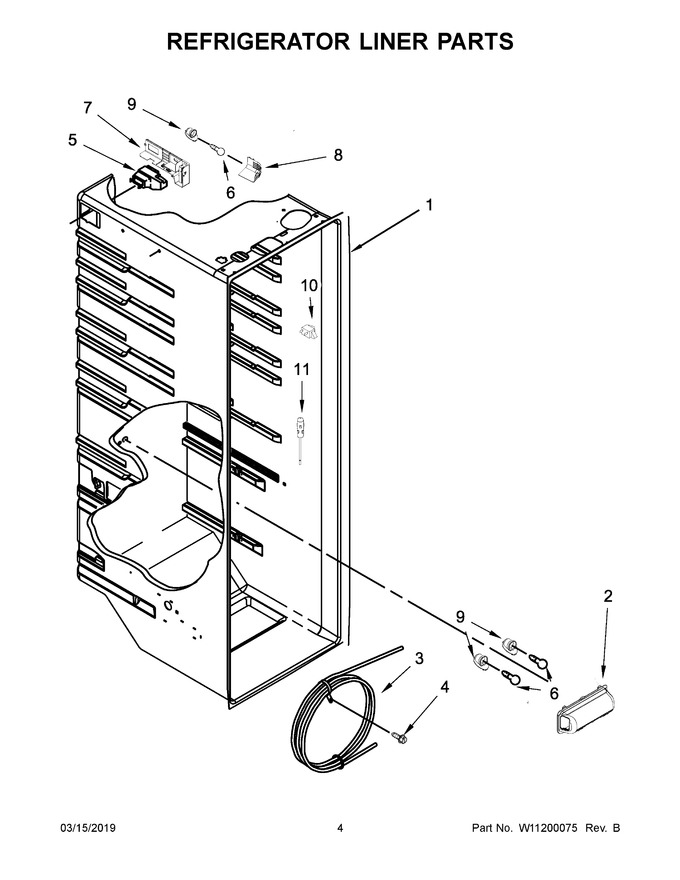

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | W11239891 | Lens, Light (includes Gasket) (Replaces: W10166130) |
|
$ 91.37 | |||||
| 3 | W11162434 | Tubing, Water Reservoir (Replaces: W11107443) |
|
- | |||||
| 4 | 488280 | Screw |
|
- | |||||
| 5 | W11216945 | Diffuser, Air (Replaces: W10903996) |
|
Immediately | $ 100.74 | ||||
| 6 | W11338583 | Lamp, Led (Replaces: W10805744) |
|
Immediately | $ 96.49 | ||||
| 7 | W11203272 | Assembly, Control Box (includes Electronic Control) (Replaces: W11026019) |
|
$ 138.76 | |||||
| 8 | W10900030 | Cover, Light |
|
- | |||||
| 9 | W11447232 | Socket, Light (Replaces: W10352518) |
|
Immediately | $ 12.48 | ||||
| 10 | W11384469 | Switch, Rocker Arm (Replaces: 1118894) |
|
Immediately | $ 35.18 | ||||
| 11 | WPW10384183 | Thermistor (Replaces: W10384183) |
|
Immediately | $ 106.62 |
