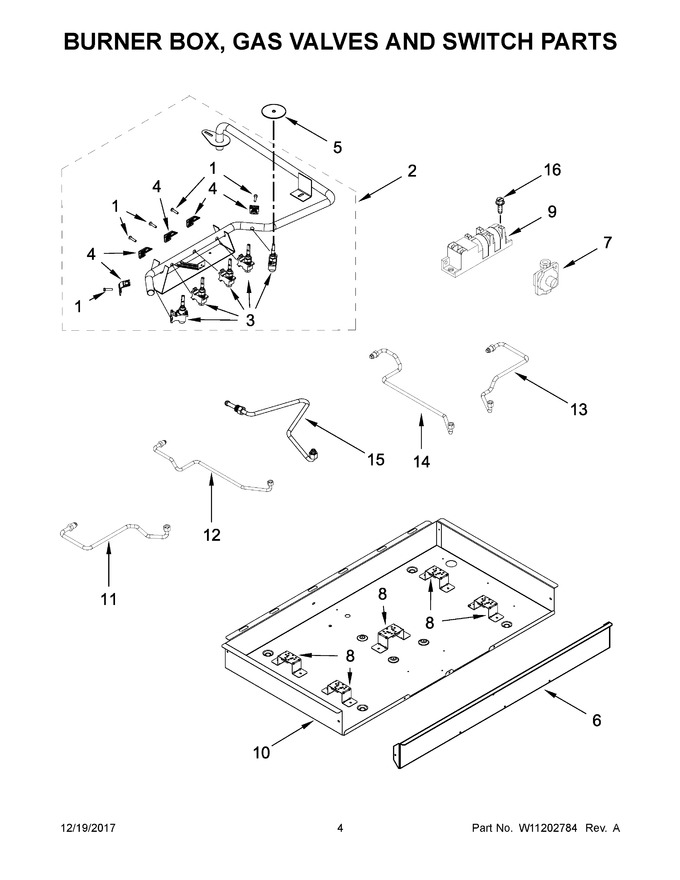

03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8287057		Screw, Valve Bracket				$ 10.66
2	W10594396		Assembly, Manifold		Appelez-nous	-
3	W11677628		Valve, Single (left Front)   (Replaces: W10594392)				$ 179.66
4	8287055		Bracket, Single Valve				$ 68.81
5	W10140571		Seal, Switch Shaft				$ 6.93
6	W10718141		Panel, Front   (Replaces: W10614951)		Appelez-nous	-
7	W11087445		Regulator, Pressure   (Replaces: W10449143)			Immediately	$ 190.26
8	W10594429		Bracket, Orifice Holder				$ 21.00
9	WPW10475149		Module, Spark (5+0)   (Replaces: W10475149)			Immediately	$ 195.52
10	W10735657		Box, Burner		Appelez-nous	-
11	W10566305		Tubing, Gas Burner (left Front)		Appelez-nous	-
12	W10566306		Tubing, Gas Burner (left Rear)		Appelez-nous	-
13	W10566308		Tubing, Gas Burner (right Front)		Appelez-nous	-
14	W10566307		Tubing, Gas Burner (right Rear)		Appelez-nous	-
15	W10566302		Tubing, Gas Burner (center)		Appelez-nous	-
16	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
3A	W11256503		Valve, Single (left Rear & Center)   (Replaces: W10594391)			Immediately	$ 247.81
3B	W10859922		Valve, Single (right Front)   (Replaces: W10594393)				$ 72.87
3C	W11712403		Valve, Single (right Rear)   (Replaces: W10597156)			Immediately	$ 90.31
NI	W10594443		Kit, Grates (gray)		Appelez-nous	-
NI	W10685483		Griddle				$ 99.79
