01 - Cover Sheet

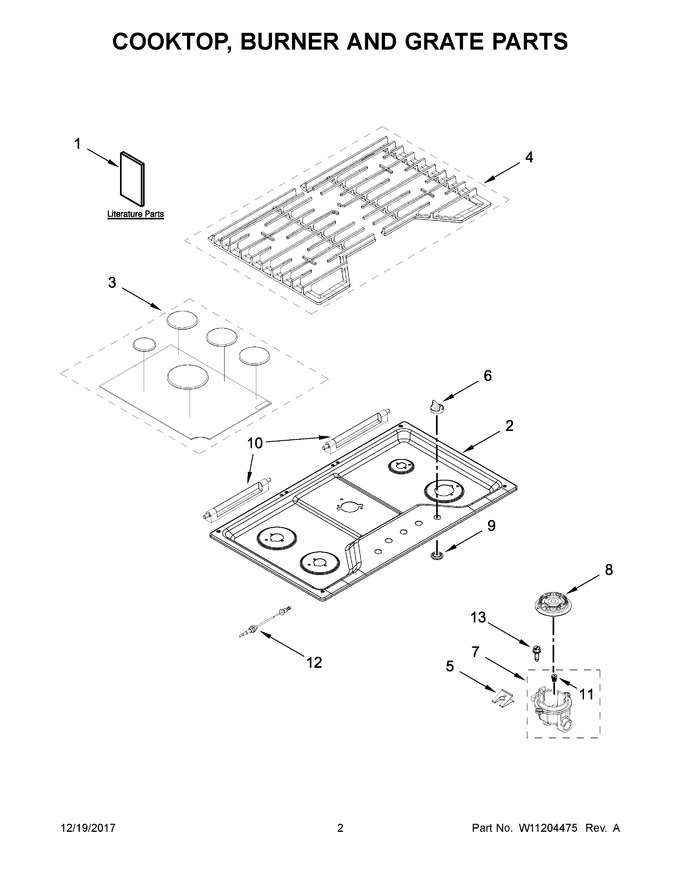

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switch Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11116971		Instructions, Installation		Appelez-nous	-
2	W11205392		Cooktop (stainless)   (Replaces: W11131859)				$ 548.31
3	W11205294		Kit, Burner Cap (black)   (Replaces: W11169224)			Immediately	$ 86.76
4	W11204009		Kit, Grate (black)   (Replaces: W11047085)				$ 317.32
5	8286863		Spring, Electrode				$ 69.23
6	W11366438		Knobs, Cooktop (stainless)   (Replaces: W11084623)			Immediately	$ 69.65
7	W10597166		Holder, Orifice (9.1k) (left Front & Left Rear)				$ 66.41
8	WP8286814		Head, Burner (left Front, Left Rear, & Right Front)   (Replaces: 8286814)			Immediately	$ 112.13
9	W11206740		Grommet (black)   (Replaces: W10625915)				$ 8.19
10	W10826075		Rear, Hinge-grate (stainless Model Only)				$ 98.96
11	W10652710		Orifice (left Front & Left Rear)				$ 24.54
12	W11507531		Wiring, Electrode (left Front, Left Rear, & Right Front)   (Replaces: W10541842)				$ 54.74
13	W11699921		Screw   (Replaces: W10758282)				$ 13.29
11A	W10791076		Orifice (right Front)   (Replaces: W10151347)				$ 90.15
11B	W10791082		Orifice (right Rear)   (Replaces: W10652711)				$ 81.27
11C	W10791073		Orifice (center)   (Replaces: W10609592)				$ 84.11
12A	W11507532		Wiring, Electrode (right Rear)   (Replaces: W10541843)			Immediately	$ 54.80
12B	W10611443		Wiring, Electrode (center)				$ 84.28
1A	W10672375		Instructions, Undercounter Install		Appelez-nous	-
1B	W11120470		Guide, Use & Care		Appelez-nous	-
1C	W11168236		Instructions, Lp Conversion		Appelez-nous	-
7A	W10613381		Holder, Orifice (10k) (right Front)				$ 64.85
7B	W10594399		Holder, Orifice (5k) (right Rear)				$ 34.93
7C	W10609591		Holder, Orifice (15k) (center)				$ 65.13
8A	WP8286813		Head, Burner (right Rear)   (Replaces: 8286813)				$ 90.22
8B	WP8286815		Head, Burner (center)   (Replaces: 8286815)			Immediately	$ 112.13
NI	WP7101P062-60		Screw (used For Tie Down Bracket)   (Replaces: 7101P062-60)				$ 7.79
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11561443		Harness, Main   (Replaces: W10868535)				$ 57.41
NI	W10392003		Cord, Power				$ 145.50
NI	W10132200		Relief, Strain		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	W11205318		Kit, Lp Conversion   (Replaces: W11173306)				$ 128.73
NI	WP3801F935-51		Bracket, Tie Down   (Replaces: 3801F935-51)				$ 38.94

    View Diagram in Separate Window       Print Part List
