01 - Cover Sheet

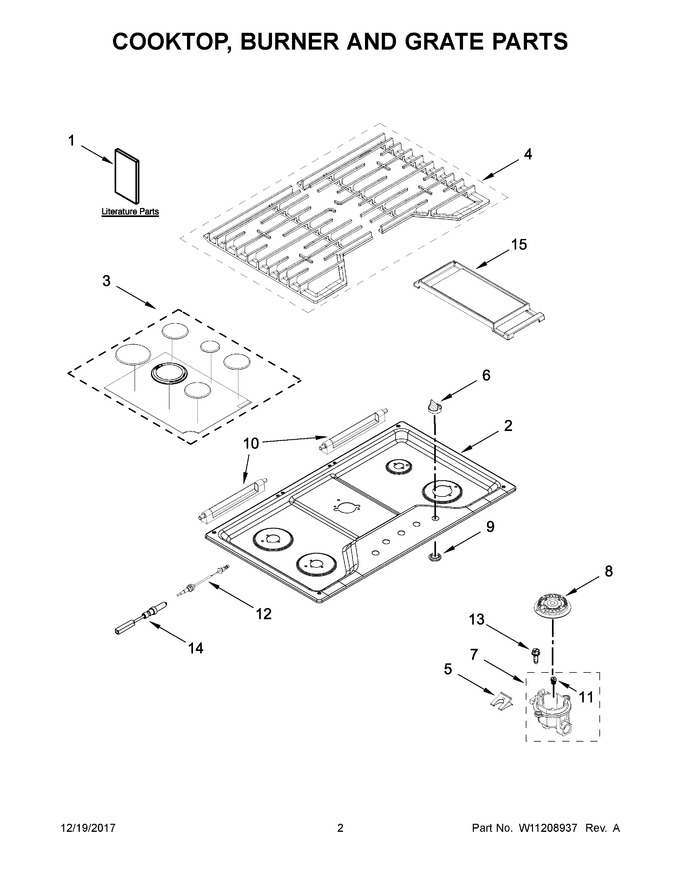

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11116971 | Instructions, Installation |
|
- | |||||
| 2 | W11209819 | Cooktop (stainless) (Replaces: W11131860) |
|
$ 548.58 | |||||
| 3 | W10833886 | Kit, Burner Cap (black) (Replaces: W10613386) |
|
$ 132.08 | |||||
| 4 | W11204009 | Kit, Grate (black) (Replaces: W11047085) |
|
$ 317.32 | |||||
| 5 | 8286863 | Spring, Electrode |
|
$ 69.23 | |||||
| 6 | W11204451 | Knobs, Cooktop (stainless) (Replaces: W11084624) |
|
Immediately | $ 73.82 | ||||
| 7 | W10613381 | Holder, Orifice (10k) (left Front, Left Rear, Right Front) |
|
$ 64.85 | |||||
| 8 | WP8286814 | Head, Burner (left Front, Left Rear, & Right Front) (Replaces: 8286814) |
|
Immediately | $ 112.13 | ||||
| 9 | W11206740 | Grommet (black) (Replaces: W10625915) |
|
$ 8.19 | |||||
| 10 | W10826075 | Rear, Hinge-grate (stainless Model Only) |
|
$ 98.96 | |||||
| 11 | W10791076 | Orifice (left Front, Left Rear, Right Front) (Replaces: W10151347) |
|
$ 90.15 | |||||
| 12 | W11507531 | Wiring, Electrode (left Front, Right Front) (Replaces: W10541842) |
|
$ 54.74 | |||||
| 13 | W11699921 | Screw (Replaces: W10758282) |
|
$ 13.29 | |||||
| 14 | W10852959 | Electrode, Stack (center) (Replaces: W10763330) |
|
$ 69.39 | |||||
| 15 | W10685483 | Griddle |
|
$ 99.79 | |||||
| 11A | W10791082 | Orifice (right Rear) (Replaces: W10652711) |
|
$ 81.27 | |||||
| 11B | W11209817 | Orifice (1.65mm) (center, Main) (Replaces: W10672111) |
|
$ 78.86 | |||||
| 11C | W11205318 | Orifice (center, Simmer) (Replaces: W10151362) |
|
$ 128.73 | |||||
| 12A | W11507532 | Wiring, Electrode (left Rear, Right Rear) (Replaces: W10541843) |
|
Immediately | $ 54.80 | ||||
| 1A | W10672375 | Instructions, Undercounter Install |
|
- | |||||
| 1B | W11120470 | Guide, Use & Care |
|
- | |||||
| 1C | W11168236 | Instructions, Lp Conversion |
|
- | |||||
| 7A | W10594399 | Holder, Orifice (5k) (right Rear) |
|
$ 34.93 | |||||
| 7B | W11209432 | Holder, Orifice Stack (17k) (center) (Replaces: W11168367) |
|
$ 109.15 | |||||
| 8A | WP8286813 | Head, Burner (right Rear) (Replaces: 8286813) |
|
$ 94.73 | |||||
| 8B | W10811599 | Head, Burner (center) (Replaces: W10611434) |
|
$ 195.46 | |||||
| NI | 9760045 | Seal, Foam |
|
$ 248.24 | |||||
| NI | W11205318 | Kit, Lp Conversion (Replaces: W11173306) |
|
$ 128.73 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 18.48 | |||||
| NI | W10132200 | Relief, Strain |
|
- | |||||
| NI | W10392003 | Cord, Power |
|
$ 145.50 | |||||
| NI | W11561436 | Harness, Main (Replaces: W10868533) |
|
$ 58.06 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 12002793 | Tape, Foam (Replaces: 8270P188-60) |
|
$ 74.52 | |||||
| NI | WP7101P062-60 | Screw (used For Tie Down Bracket) (Replaces: 7101P062-60) |
|
$ 7.79 | |||||
| NI | WP3801F935-51 | Bracket, Tie Down (Replaces: 3801F935-51) |
|
$ 38.94 |
