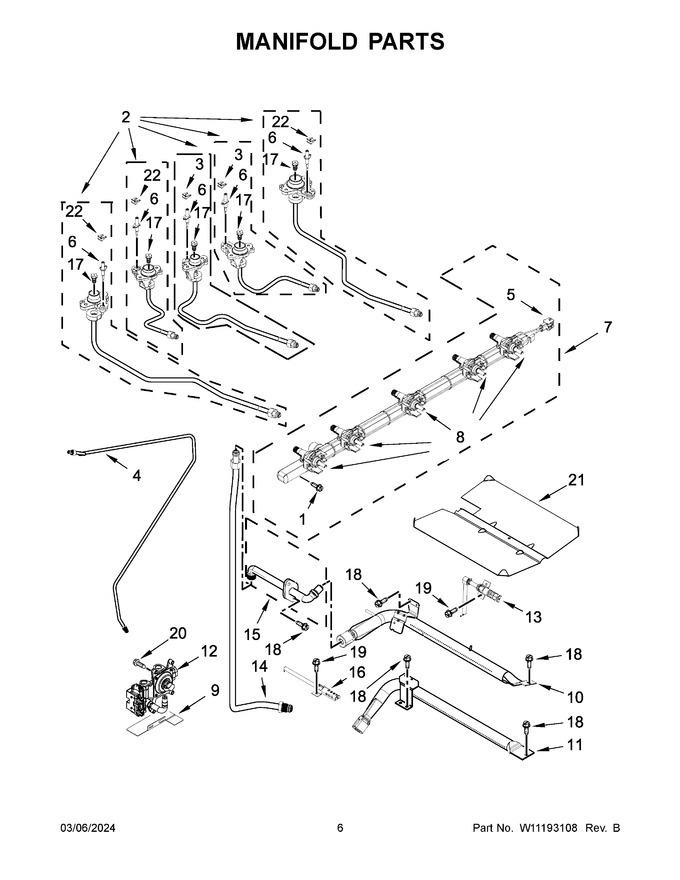

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11666001		Screw   (Replaces: W10246216)				$ 12.85
2	W11122530		Assembly, Orifice (left Front)   (Replaces: W10867777)				$ 90.12
3	W11084050		Clip, Electrode				$ 19.83
4	W11107282		Tube, Supply				$ 141.61
5	W10885903		Harness, Spark Switch				$ 171.27
6	W11661929		Electrode, Burner (left Front And Right Rear)   (Replaces: W10669526)			Immediately	$ 45.19
7	W11259408		Assembly, Manifold   (Replaces: W10862591)				$ 317.46
8	W11123245		Valve, Gas (right Rear And Center)   (Replaces: W11033235)			Immediately	$ 230.18
9	W10224921		Bracket, Aegis		Appelez-nous	-
10	W11676566		Burner, Broiler   (Replaces: W10439242)				$ 85.48
11	W10764654		Burner, Bake   (Replaces: W10680035)			Immediately	$ 82.49
12	W10861656		Valve, Regulator   (Replaces: W10554066)			Immediately	$ 301.09
13	WPW10324262		Igniter, Bake   (Replaces: W10324262)			Immediately	$ 98.85
14	W10306050		Tube, Broil Supply (broiler Fitting To Valve)				$ 170.84
15	W10583216		Fitting, Broil Burner				$ 86.27
16	WPW10333842		Electrode, Broil   (Replaces: W10333842)			Immediately	$ 93.71
17	W10907865		Orifice (left Front)				$ 81.62
18	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
19	W11684507		Screw   (Replaces: 3196385)				$ 12.84
20	WP3400016		Screw   (Replaces: 3400016)				$ 7.55
21	3601P33645		Baffle, Broil Burner		Appelez-nous	-
22	W11684564		Electrode, Spring   (Replaces: W10827923)			Immediately	$ 11.39
17A	W11677633		Orifice (5k) (left Rear)   (Replaces: W10849719)				$ 89.24
17B	W11209817		Orifice (1.65mm) (right Front)   (Replaces: W10672111)				$ 78.86
17C	W10849714		Orifice (9.5k) (right Rear)				$ 84.11
17D	W10674732		Orifice (10k) (center)				$ 18.58
2A	W11122534		Assembly, Orifice (left Rear)   (Replaces: W10867779)				$ 87.08
2B	W11672515		Assembly, Orifice (right Front)   (Replaces: W10867780)				$ 213.78
2C	W11122547		Assembly, Orifice (right Rear)   (Replaces: W10867778)			Immediately	$ 90.12
2D	W11122548		Assembly, Orifice (center)   (Replaces: W11047836)				$ 263.73
6A	W11643126		Electrode, Burner (left Rear)   (Replaces: W10669524)			Immediately	$ 47.89
6B	W11084034		Electrode, Burner (right Front)				$ 59.56
6C	W11082199		Electrode, Burner (center)				$ 59.56
8A	W11123995		Valve, Gas (left Rear)   (Replaces: W11033237)		Appelez-nous	-
8B	W11123996		Valve, Gas (left Front And Right Front)   (Replaces: W11033232)				$ 230.18
